51 33 000 Removing and installing (replacing) power window regulator in left or right front door
IMPORTANT:
F25 only:
Before replacing the electric power window regulator, observe NOTE on installation!
NOTE:
Disengage, but do not remove, the door window and secure in the door window frame.
Necessary preliminary work:

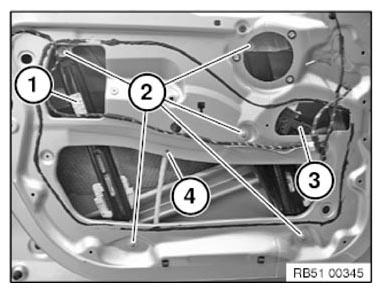

Release plug connection of flat motor (3) and disconnect.
Release cable from holder in area (4).
Release nuts (2) and feed out power window regulator (1).
Tightening torque 51 33 2AZ .
Replacement
Remount FLAT MOTOR FOR POWER WINDOW REGULATOR .
