65 13 070 Removing and installing/replacing speakers (mid-range speaker, front door left and right)

Necessary preliminary work:

• Remove front DOOR TRIM PANEL

Unfasten plug connection (1) and disconnect.

Release screws at marked points.

Tightening torque 65 12 1AZ .

Remove speaker (2) from inner door panel (3).

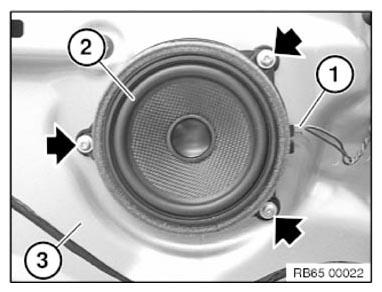

Fig 1: Locating Speaker Screws From Inner Door Panel

Courtesy of BMW OF NORTH AMERICA, INC.
