63 17 070 Removing and installing/replacing left fog light

Unlock fog light (1) at clamp (2) using suitable tool.

Remove fog light (1) in direction of travel.

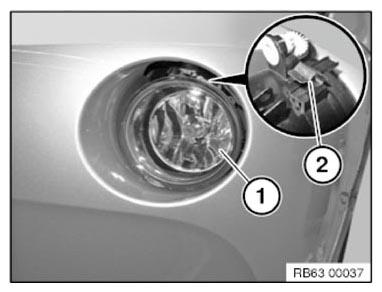

Fig 1: Removing Fog Light Clamp

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten plug connection (1) and disconnect.

Remove fog light (2).

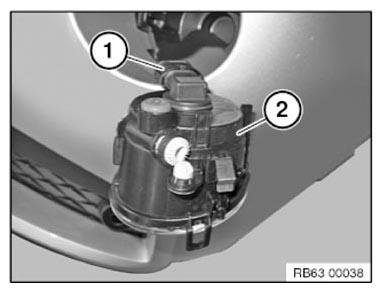

Fig 2: Identifying Fog Light Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

On replacement of fog light or bumper panel at front:

• If necessary, remount BULB , check bulb type  . See FRONT FOG LAMPS, ADDITIONAL LAMPS (BUILT UNTIL 04/14) or FRONT FOG LAMPS, ADDITIONAL LAMPS (AS OF 04/14) .
• ADJUST FOG LIGHTS
