63 10 014 Adjusting fog lights

Comply with TEST PRECONDITIONS FOR HEADLIGHT ADJUSTMENT .

IMPORTANT: Do not damage adjusting screw when adjusting fog light.

Adjust fog light (1) at adjusting screw (2).

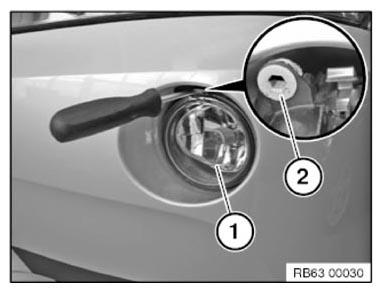

Fig 1: Adjusting Fog Light
G09949754Courtesy of BMW OF NORTH AMERICA, INC.
