51 24 350 Removing and installing/replacing left spindle drive (automatic tailgate activation)

WARNING: Danger of injury!
Support tailgate in fully opened position with suitable apparatus.
WARNING: In the event of customer complaints:
  • Rattling when opening and closing
  • Drive not functioning
  • Drive is blocked or sluggish
  • No longer closes or opens

Or if incorrect operation is suspected:
  • Rear lid was closed with excessive exertion of force
  • Bent, broken piston rod
  • Broken ball head

The compression spring must be secured against unintentional sudden release.
WARNING: Observe warning notices on the damper.
Electric spindle drive for tailgate is under mechanical spring preload!
The component must be secured against falling down.
IMPORTANT: Risk of damage to spindle drive!
If spindle drive has been electrically disabled (e.g. connector unplugged) the tailgate must only be moved slowly by hand.

These repair instructions are based on the DISASSEMBLY AND INSTALLATION OF BALL SOCKETS WITH CLAMP .

Necessary preliminary tasks:

Version with load area net mounts:

Remove all load area net mounts (3).

Open protective cap (1).

Release screw (2) and remove dividing net mounts (3).

Installation note:

Pay attention to position specifications on rear side of dividing net mounts.

Fig 1: Identifying Spindle Drive, Net Mounts, Cap And Screw
G05506790Courtesy of BMW OF NORTH AMERICA, INC.

Release edge protection of headlining (3) between left D-pillar and right D-pillar.

Unclamp clamp (2).

Fig 2: Identifying D-Pillar, Headlining And Clamp
G09948330Courtesy of BMW OF NORTH AMERICA, INC.

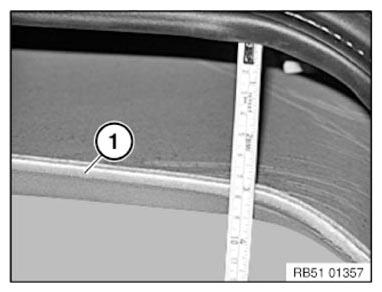

Lower headlining (1) in area of D-pillar by 7 cm.

Fig 3: Checking D-Pillar Headlining
G09948331Courtesy of BMW OF NORTH AMERICA, INC.

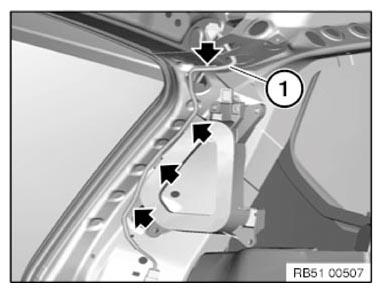

Unclip wiring harness (1) from top to bottom at marked points.

Fig 4: Locating Spindle Drive Wiring Harness Marked Points
G09948332Courtesy of BMW OF NORTH AMERICA, INC.

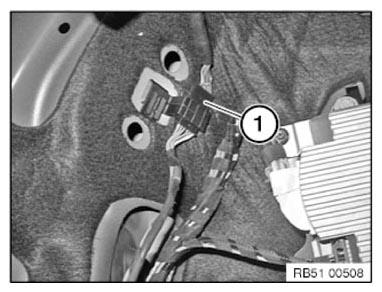

Disconnect plug connection (1) at bottom.

Fig 5: Identifying Spindle Drive Plug Connection
G09948333Courtesy of BMW OF NORTH AMERICA, INC.

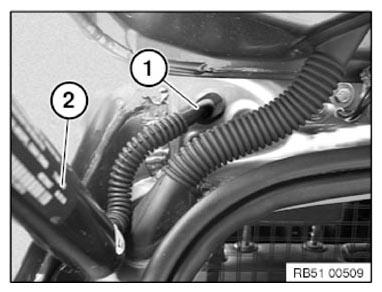

Feed the rubber grommet (1) including wiring harness out.

Installation note:

Rubber hose with rubber grommet (1) of spindle drive (2) may not be damaged or missing. Install rubber grommet (1) correctly to prevent water penetration.

Fig 6: Identifying Spindle Drive And Rubber Grommet
G09948334Courtesy of BMW OF NORTH AMERICA, INC.

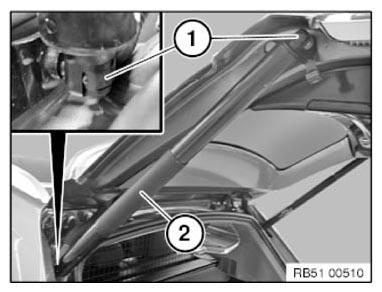

Unclip spindle drive (2) from ball sockets (1) and remove.

NOTE: For possibly required tightening torques for holders of the spindle drive and/or ball head. See 51 24 14/15AZ .
Fig 7: Identifying Spindle Drive And Ball Sockets
G09948335Courtesy of BMW OF NORTH AMERICA, INC.

Concluding tasks:

Initialize automatic operation of tailgate using the service function in the diagnosis system.

Selection via:

Check the opening angle setting of the tailgate and restore the customer setting if necessary.
