51 16 166 Replacing center console

Special tools required:

When working on trim panel components, make sure that visible surfaces are not scratched or damaged (e.g. by sharp-edged tools).

Necessary preliminary tasks:

Unclip drinks holder (1) at retaining clips (2) and retaining hooks (3).

Fig 1: Identifying Cupholder, Retaining Clips And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

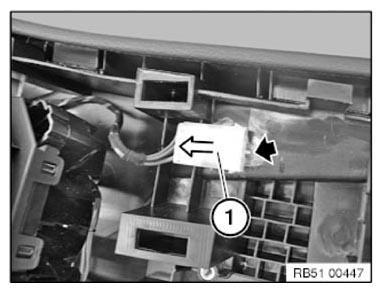

Unlock plug connection (1) and remove drinks holder.

Fig 2: Identifying Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Release lower screws (1) from top rear of storage compartment (2).

Fig 3: Identifying Storage Compartment Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Fold up center armrest if necessary (1).

Release upper screw (2) from upper rear shelf.

Fig 4: Identifying Center Armrest Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Using special tool 00 9 325 lever out storage compartment at top rear (1) and pull back to detach.

Fig 5: Removing Storage Compartment

Courtesy of BMW OF NORTH AMERICA, INC.

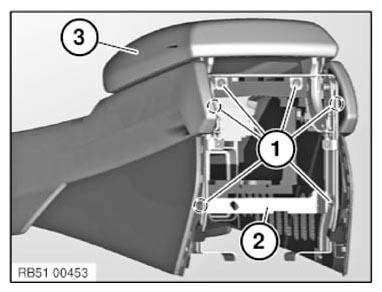

Release screws (1) on support (2).

Swivel the support (2) to the lower inside until the support (2) and center armrest (3) can be fed out toward the back from the center console.

Installation note:

Feed support (4) correctly into center console.

Check folding function of center armrest (3) after bolting down the support (4).

Fig 6: Identifying Carrier Housing, Center Armrest And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

For version with comfort access only:

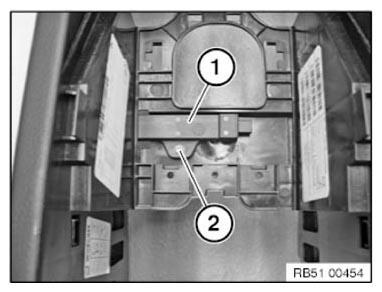

Undo screw (2) of interior aerial (1).

Remove interior aerial (1).

Fig 7: Identifying Interior Aerial Screws

Courtesy of BMW OF NORTH AMERICA, INC.
