52 26 080 Removing and installing/replacing backrest frame for left rear seat (through-loading system)
WARNING: This page is about a different car, the 2013 BMW X5, 2012 BMW X5, and 2011 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove BACKREST COVER
- Remove RETRACTOR MECHANISM
- Remove LOCK

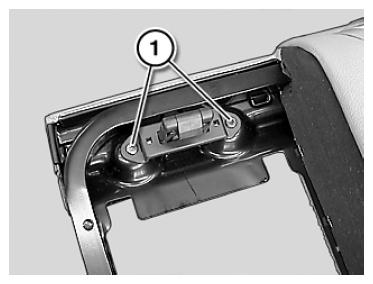

Release screws (1).
Installation:
Replace screws and insert with Loctite.
Tightening torque 52 26 07AZ .
Remove lock for center armrest.
