36 10 713 Checking One Road Wheel On Balancing Machine For Lateral And Radial Runout (Wheel Removed)

WARNING: This page is about a different car, the 2013 BMW X5, 2012 BMW X5, and 2011 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

Necessary preliminary tasks:

REMOVE WHEEL

Mount wheel in balancing machine.

To avoid retooling errors, fit the wheel on the balancing machine in the same way as it is also fitted on the car (valve position facing down).

Fig 1: Mounting Wheel To Balancing Machine

Courtesy of BMW OF NORTH AMERICA, INC.

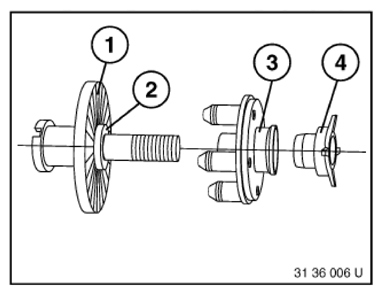

Use suitable wheel centering element supplied with corresponding balancing machine.

Basic flange.
Wheel centering element.
Type flange.
Clamping nut.

Fig 2: Basic Flange, Wheel Centering Element And Clamping Nut

Courtesy of BMW OF NORTH AMERICA, INC.

Use special tool 36 1 030 for testing.

Special tool 36 1 030 consists of:

Standing base 36 1 031 .
Post with clamp 36 1 032 .
Holder with clamp 36 1 033 .
Clamp 36 1 034 .
Measuring roll 36 1 035 .
Dial gauge 36 1 036 .

Fig 3: Special Tool 36 1 030
Courtesy of BMW OF NORTH AMERICA, INC.

Position special tool 36 1 030 on tire tread surface.

Turn wheel by hand and measure max. radial tire runout . See WHEELS TWO-PART ALLOY WHEELS , WHEELS ONE-PART ALLOY WHEELS or WHEELS STEEL AND ALUMINUM STRIP WHEELS .

NOTE: Measuring device must be vertical to tire tread surface.

Fig 4: Positioning Special Tool 36 1 030 On tire Tread Surface

Courtesy of BMW OF NORTH AMERICA, INC.

Position special tool 36 1 030 on tire sidewall.

Turn wheel by hand and measure max. lateral tire runout . See WHEELS TWO-PART ALLOY WHEELS , WHEELS ONE-PART ALLOY WHEELS or WHEELS STEEL AND ALUMINUM STRIP WHEELS .

NOTE: Measuring device must be vertical to tire side wall.

Never measure on tire inscription!

If necessary, CHECK DISC WHEEL (RIM) FOR RADIAL AND LATERAL RUNOUT .

Fig 5: Positioning Special Tool 36 1 030 On tire Sidewall

Courtesy of BMW OF NORTH AMERICA, INC.
