16 19 090 Removing and installing/replacing SCR delivery module
WARNING: This page is about a different car, the 2013 BMW X5, 2012 BMW X5, and 2011 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:
Ensure adequate ventilation in the workbay!
Avoid skin contact (wear gloves)!
Avoid eye contact (safety goggles)!
Urea/water mixture can escape when components carrying urea/water mixture are released. Have a collecting vessel ready.
Observe country-specific waste disposal regulations.
Avoid skin contact (wear gloves)!
Avoid eye contact (safety goggles)!
Urea/water mixture can escape when components carrying urea/water mixture are released. Have a collecting vessel ready.
Observe country-specific waste disposal regulations.
IMPORTANT:
Maintain conditions of absolute cleanliness.
Connections and covers of lines carrying urea/water mixture must be cleaned thoroughly with water after each removal or before each installation!
Thoroughly clean the working area with water after repair work.
Use fluff-free cloths for cleaning .
Close connections and lines!
Thoroughly clean special tool with water after each use.
Connections and covers of lines carrying urea/water mixture must be cleaned thoroughly with water after each removal or before each installation!
Thoroughly clean the working area with water after repair work.
Use fluff-free cloths for cleaning .
Close connections and lines!
Thoroughly clean special tool with water after each use.
Necessary preliminary tasks:
- Remove ACTIVE RESERVOIR

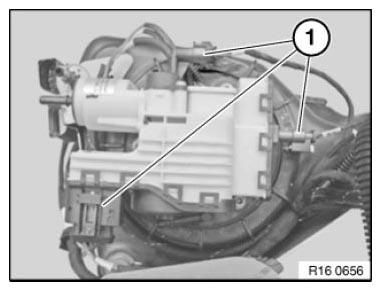

Disconnect plug connection (1).

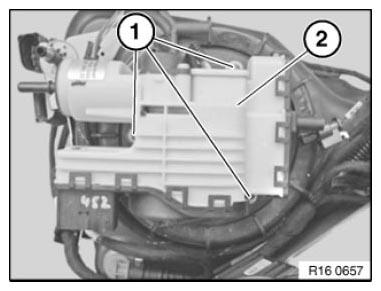

Release screws (1).
Installation note:
Tightening torque: 16 19 5AZ .
Pull off SCR delivery module (2) in upward direction.
Installation note:

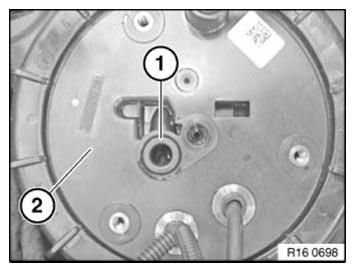

Replace gasket (1) on active reservoir (2).
Installation note:

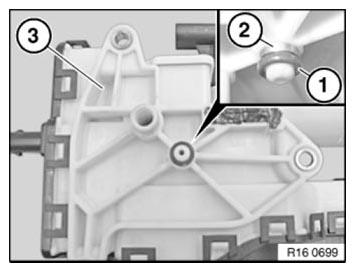

Replace O-ring (1) on SCR delivery module (3).
IMPORTANT:
Make sure without fail that sleeve (2) is located under O-ring (1).
