16 19 005 Removing and installing/replacing metering line for Selective Catalytic Reduction (SCR)
WARNING: This page is about a different car, the 2013 BMW X5, 2012 BMW X5, and 2011 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:
Ensure adequate ventilation in the workbay!
Avoid skin contact (wear gloves)!
Avoid eye contact (safety goggles)!
Urea/water mixture can escape when components carrying urea/water mixture are released. Have a collecting vessel ready.
Observe country-specific waste disposal regulations.
Avoid skin contact (wear gloves)!
Avoid eye contact (safety goggles)!
Urea/water mixture can escape when components carrying urea/water mixture are released. Have a collecting vessel ready.
Observe country-specific waste disposal regulations.
IMPORTANT:
Maintain conditions of absolute cleanliness.
Connections and covers of lines carrying urea/water mixture must be cleaned thoroughly with water after each removal or before each installation!
Thoroughly clean the working area with water after repair work.
Use fluff-free cloths for cleaning .
Close connections and lines!
Thoroughly clean special tool with water after each use.
Connections and covers of lines carrying urea/water mixture must be cleaned thoroughly with water after each removal or before each installation!
Thoroughly clean the working area with water after repair work.
Use fluff-free cloths for cleaning .
Close connections and lines!
Thoroughly clean special tool with water after each use.
Necessary preliminary work:
- Remove ACTIVE RESERVOIR
- Remove right HEADLIGHT
- Remove DIESEL PARTICULATE FILTER

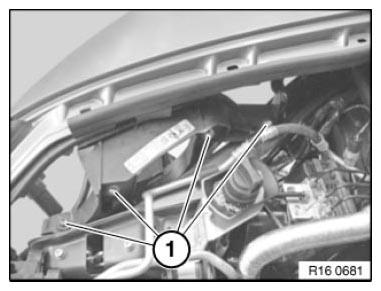

Release screws (1).
Installation note:
Tightening torque: 41 35 10AZ .

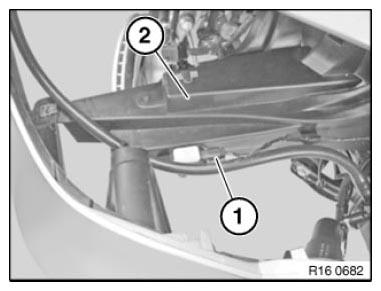

Disconnect plug connection (1).
Unclip line on module carrier (2).

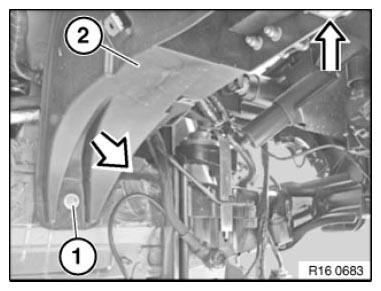

Slacken nut (1).
Installation note:
Tightening torque: 41 35 11AZ .
Tilt side panel outwards a little.
Raise outer module carrier (2) and feed out in downward direction.
NOTE:
Picture shows engine and transmission removed for purposes of clarity.

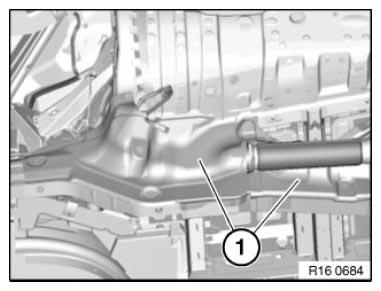

Remove heat insulation (1).
IMPORTANT:

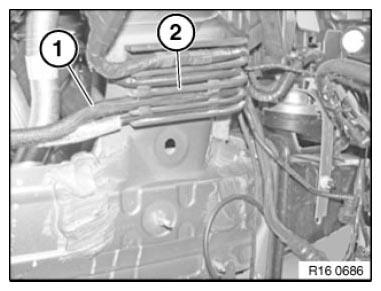

Do not kink metering line (1).

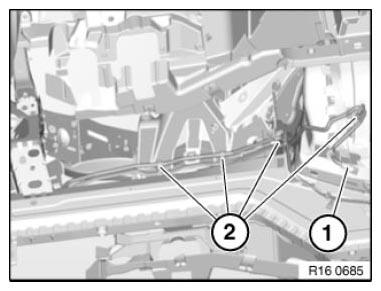

Unclip metering line (1) from holders (2).
Unclip metering line (1) from holder (2).
Remove metering line (1).
