16 12 001 Removing and installing/replacing fuel gauge sensor (diesel, left with delivery unit)

WARNING: This page is about a different car, the 2013 BMW X5, 2012 BMW X5, and 2011 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Recycling

Fuel escapes when fuel lines are detached. Have a suitable collecting vessel ready.

Catch and dispose of escaping fuel.

Observe country-specific waste disposal regulations.

IMPORTANT: Ensure adequate ventilation in the workbay!
Avoid skin contact (wear gloves)!
When performing repair work on the open fuel tank, work with a clean environment. Dirt contamination in the fuel tank can lead to driving impairments or to vehicle failure.
Before starting the engine for the first time:

Fill fuel tank with at least 5 liters of fuel

Check TRANSFER FUNCTION OF SUCTION JET PUMP .

Necessary preliminary tasks:

DRAW OFF FUEL FROM FUEL TANK
Remove seat bench . See 52 26 005 REMOVING AND INSTALLING/REPLACING REAR SEAT or 52 26 000 REMOVING AND INSTALLING/REPLACING LEFT OR RIGHT REAR SEAT (FOR 3RD SEAT ROW) on vehicles with a 3rd row of seats
Remove RIGHT SENSOR UNIT

For E70 without 3rd row of seats only:

Only unclip seat bench (1) as shown on the left and right and fold up in direction of arrow.

Secure seat bench on front seat (2).

Fig 1: Securing Seat Bench

Courtesy of BMW OF NORTH AMERICA, INC.

Only for vehicles with 2 rows of seats:

Disconnect plug connection (1).

Remove cover (2).

Fig 2: Identifying Plug Connection And Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Release nuts (1) and remove cover for sensor opening (2) from left side of fuel tank.

Fig 3: Identifying Sensor Opening Cover And Nut

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection (1).

Unlock quick-release fastener (2) and detach fuel feed line.

Unlock quick-release fastener (3) for vent line and detach.

Fig 4: Identifying Quick-Release Fastener And Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Completely undo the rest of the torque sheer head (1) using a screwdriver.

Remove hose clamp from clamping ring (2).

NOTE: To release the hose clamp, a flexible extension can be used.

Press clamping ring (2) apart at open end in direction of arrow and remove.

Fig 5: Pressing Clamping Ring

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Make sure that service cover is installed in correct position.

Indentation (2) on clamping ring must line up with raised section (1) of tank.

Pin on service cover (3) must line up with indentation on clamping ring.

Hose clamp with torque sheer head (4) always needs to be replaced.

Tighten hose clamp until torque sheer head (4) breaks off.

Fig 6: Identifying Service Cover Journal, Torque Sheer Head And Bulge

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Seal (1) must always be replaced.

Fig 7: Identifying Fuel Pump Seal

Courtesy of BMW OF NORTH AMERICA, INC.

Attach an auxiliary lead (1) to hose pack (2) through sensor opening.

The auxiliary lead is pulled through with the hose pack towards the left and facilitates subsequent reinstallation.

Installation note:

Make sure when pulling through the hose pack that the tank ventilation system in the tank tunnel is not damaged.

Fig 8: Identifying Auxiliary Lead And Hose Pack

Courtesy of BMW OF NORTH AMERICA, INC.

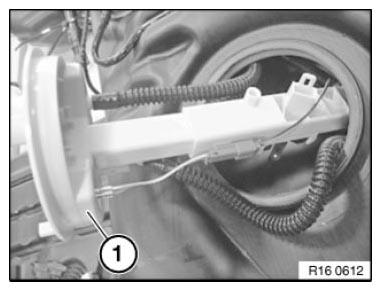

Remove sensor unit (1) from fuel tank.

Feed sensor unit (1) with hosepack out of fuel tank.

Installation note:

When replacing the sensor unit, modify the end of the auxiliary lead to the new hose pack and carefully pull in through the tank.

NOTE: Illustration shows the tank removed.

Fig 9: Identifying Fuel Tank Sensor Unit

Courtesy of BMW OF NORTH AMERICA, INC.

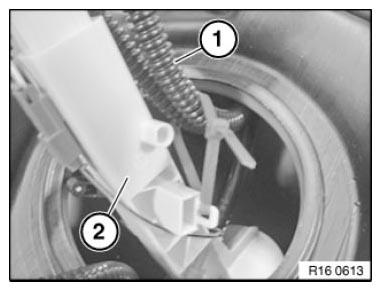

Installation note:

Fix corrugated tubing (1) in place using hose tape.

Corrugated tubing (1) must not be in contact with the plastic base (2).

Fig 10: Identifying Corrugated Tubing And Plastic Base

Courtesy of BMW OF NORTH AMERICA, INC.
