52 26 005 Removing and installing/replacing rear seat

WARNING: This page is about a different car, the 2013 BMW X5, 2012 BMW X5, and 2011 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Unclip rear seat on left and right towards top.

Installation:

Feed seat belt buckles (1) into openings in rear seat.

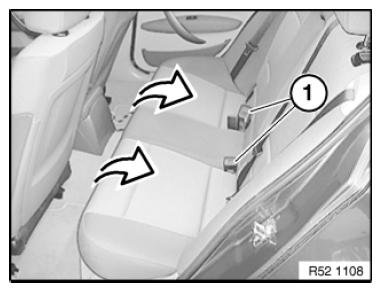

Fig 1: Removing Seat Belt Buckles

Courtesy of BMW OF NORTH AMERICA, INC.

Only on vehicles with seat heating and/or rear fan option:

Unlock plug connections (1) and disconnect.

Fig 2: Identifying Seat Heating Plug Connections

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1) on seat belt (middle).

Tightening torque 72 11 22AZ .

Installation:

Seat belt is coded against incorrect installation.

Feed out anchor fitting (2) through rear seat.

Lift out rear seat.

Fig 3: Identifying Seat Belt Anchor Fitting

Courtesy of BMW OF NORTH AMERICA, INC.
