11 23 010 Removing and installing/renewing vibration damper (N63)

WARNING: This page is about a different car, the 2013 BMW X5, 2012 BMW X5, and 2011 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

Necessary preliminary work:

Remove FAN COWL
Remove A/C compressor DRIVE BELT
Remove alternator DRIVE BELT
Remove belt pulley for A/C system. See DRIVE BELT .

Release screw (1).

Tightening torque: 11 28 1AZ .

Remove belt tensioner with idler pulley (2).

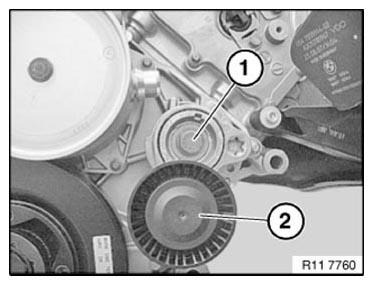

Fig 1: Identifying Belt Tensioner With Idler Pulley And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Secure special tool 11 8 090 with three screws (1) to vibration damper.

Secure special tool 11 8 090 with belt tensioner bolt (2) to timing case cover.

Tightening torque: 11 28 1AZ .

NOTE: A 3/4 inch tool is needed to release the central bolt.

Release central bolt on vibration damper.

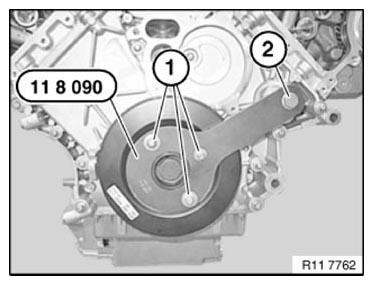

Fig 2: Securing Special Tool 11 8 090 With Belt Tensioner Bolt To Timing Case Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Secure central bolt with special tool 00 9 140 or 11 3 460 .

Position special tool 11 3 460 on special tool 11 8 090 .

Adjust special tool 11 9 453 on special tool 11 9 454 using clamping screw to 0° on scale.

Tightening torque: 11 23 1AZ .

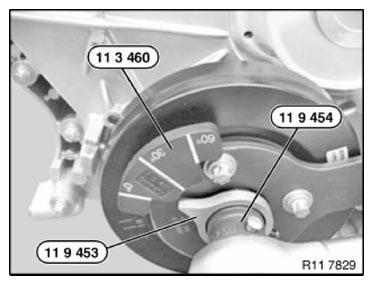

Fig 3: Securing Central Bolt With Special Tool 11 3 460

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.
