11 28 050 Replacing A/C compressor drive belt with belt tensioner (N63)

WARNING: This page is about a different car, the 2013 BMW X5, 2012 BMW X5, and 2011 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Risk of damage!
Release screws (1) on vibration absorber only if removal position is adjusted.
If contaminated with hydraulic fluid: Replace drive belt.
Crank engine at central bolt in direction of engine rotation.

Installation note:

If the drive belt is to be reused, mark direction of travel and reinstall drive belt in same direction of rotation.

Necessary preliminary work:

Remove DRIVE BELT for alternator.

NOTE: Observe direction of engine rotation.

Crank engine at central bolt until marking (see arrow) is reached on vibration absorber.

Release screws (1).

Tightening torque: 11 28 2AZ .

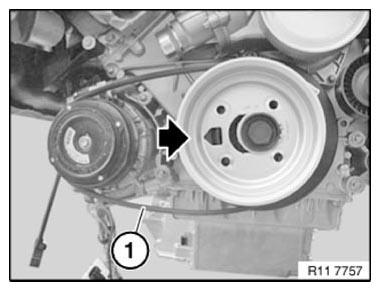

Fig 1: Locating Engine Central Bolt Marking

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Belt pulley is pretensioned.
Belt pulley tension is relieved abruptly during the cranking process!

NOTE: Observe direction of engine rotation.

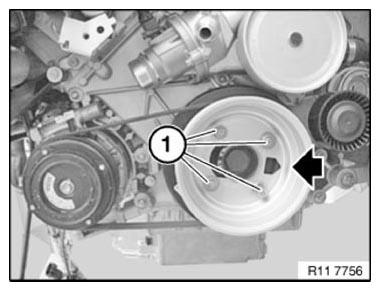

Fig 2: Locating Engine Central Bolt Marking

Courtesy of BMW OF NORTH AMERICA, INC.

Crank engine at central bolt until marking (see arrow) is reached on vibration absorber.

Remove elasto-belt.

Assemble engine.
