11 71 100 Removing and installing or replacing the exhaust-gas recirculation cooler (M57T2-SCR)

WARNING: This page is about a different car, the 2013 BMW X5, 2012 BMW X5, and 2011 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: When working on the oil, coolant or fuel circuit, you must protect the alternator against dirt contamination.

Cover alternator and belt drive with suitable apparatus.

Necessary preliminary tasks:

Remove acoustic cover. See 13..... REMOVE THE ACOUSTIC COVERS (M57T2 WITH AND WITHOUT SCR) .
Remove FAN COWL .
DRAIN coolant from radiator.
Remove INTAKE SILENCER HOUSING .

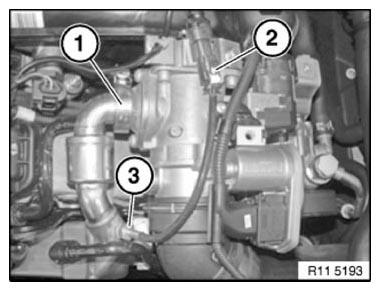

Release clamp (1) from exhaust-gas recirculation cooler.

Installation note:

Tightening torque: 11 71 5AZ .

Disconnect connector (2).

Turn plug socket counterclockwise and remove in upward direction from holder.

Installation note:

If replacing, modify exhaust-gas temperature sensor (3).

Tightening torque: 11 71 7AZ .

Fig 1: Identifying Exhaust-Gas Temperature Sensor And Connector

Courtesy of BMW OF NORTH AMERICA, INC.

Follow notes for repair work on the cooling system.

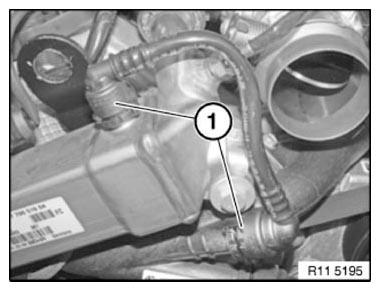

Unlock and detach coolant hose (1).

Fig 2: Identifying Coolant Hose

Courtesy of BMW OF NORTH AMERICA, INC.

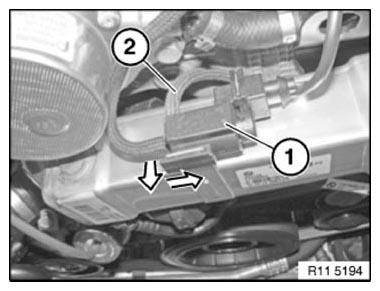

Gently pull clip from electric changeover valve (1) towards front and slide away to right side.

Fig 3: Pulling Clip From Electric Changeover Valve

Courtesy of BMW OF NORTH AMERICA, INC.

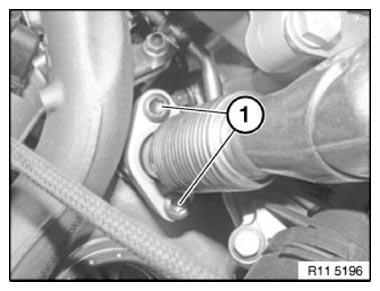

Release screws (1) on the exhaust-gas recirculation cooler/manifold.

Installation note:

Tightening torque: 11 71 4AZ .

Fig 4: Identifying Screws On Exhaust-Gas Recirculation Cooler/Manifold

Courtesy of BMW OF NORTH AMERICA, INC.

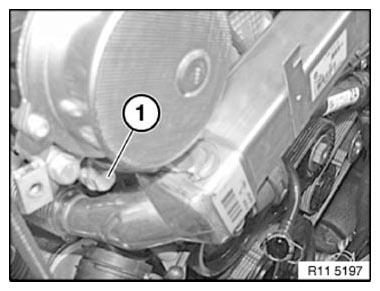

Unfasten screw (1)

Installation note:

Tightening torque: 11 71 6AZ .

Fig 5: Identifying Screw

Courtesy of BMW OF NORTH AMERICA, INC.

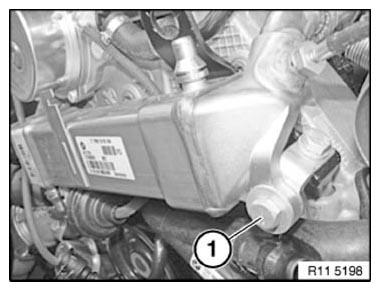

Release bolt (1) and remove exhaust-gas recirculation cooler.

Installation note:

Replace screw.

Tightening torque: 11 71 6AZ .

Fig 6: Identifying Exhaust-Gas Recirculation Cooler And Bolt

Courtesy of BMW OF NORTH AMERICA, INC.

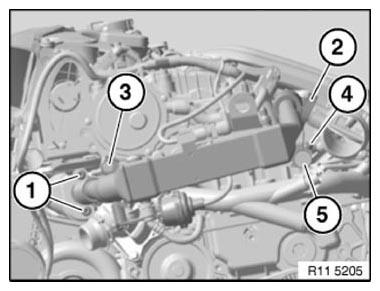

Installation note:

Observe tightening sequence.

Join bolts (3, 4 and 5).
Tightening torque: 11 71 6AZ .
Release bolts (3, 4 and 5) back by 90°.
Secure screws (1).
Tightening torque: 11 71 4AZ .
Secure profile clamp (2).
Tightening torque: 11 71 5AZ .
Tighten screw (3).
Tightening torque: 11 71 6AZ .
Secure bolt (4) on holder.
Tightening torque: 11 71 6AZ .
Secure microencapsulated screw (5).
Tightening torque: 11 71 6AZ .

Fig 7: Identifying Profile Clamp, Holder And Bolt
Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

TOP UP COOLANT .
