11 65 180 Removing and installing/renewing heat shield at top (N63)

Necessary preliminary work:

• Remove both INTAKE FILTER HOUSINGS .
• Remove both control sensors  . See 11 78 530 REPLACING LEFT CONTROL SENSOR (N63)  or 11 78 533 REPLACING RIGHT CONTROL SENSOR (N63) .

Release screws (1).

Lift out holder.

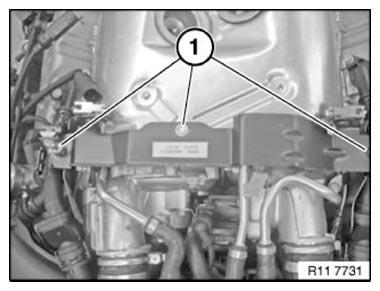

Fig 1: Identifying Holder Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (2).

Tightening torque: 11 65 3AZ .

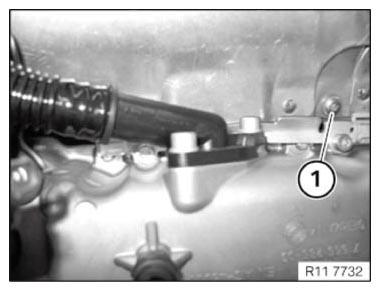

Fig 2: Identifying Intake Filter Housings Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (2).

Tightening torque: 11 65 3AZ .

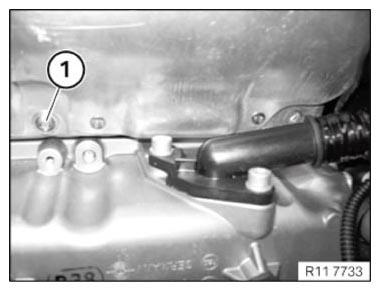

Fig 3: Releasing Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Release retaining clip (1).

Detach wire ring (2) and set down behind oxygen sensor.

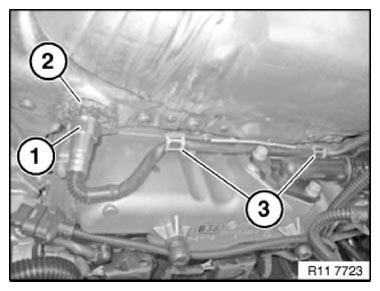

Fig 4: Detaching Wire Ring And Oxygen Sensor

Courtesy of BMW OF NORTH AMERICA, INC.

Release retaining clip (1).

Detach wire ring (2) and set down behind oxygen sensor.

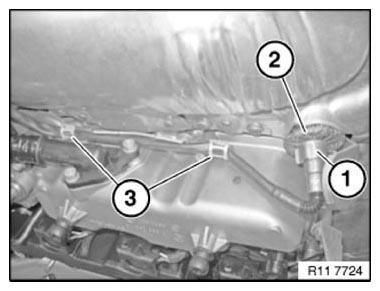

Fig 5: Detaching Wire Ring And Oxygen Sensor

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Tightening torque: 11 65 3AZ .

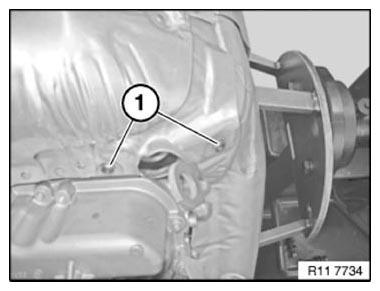

Fig 6: Identifying Heat Shield Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Tightening torque: 11 65 3AZ .

Lift out heat shield.

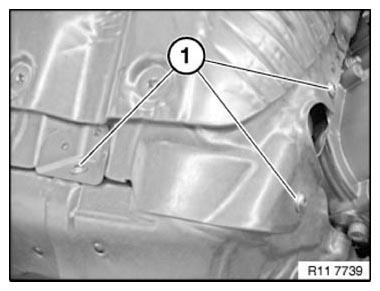

Fig 7: Identifying Heat Shield Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.
