11 65 165 Removing and installing/replacing blow-off valve (N63)

WARNING: This page is about a different car, the 2013 BMW X5, 2012 BMW X5, and 2011 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Follow diagnosis instruction.
Remove exhaust turbocharger . See 11 65 025 REMOVING AND INSTALLING/REPLACING EXHAUST TURBOCHARGER, RIGHT, CYLINDERS 1-4 (N63) or 11 65 030 REMOVING AND INSTALLING/REPLACING EXHAUST TURBOCHARGER, LEFT, CYLINDERS 5-8 (N63) .

Release screws (1).

Tightening torque: 11 65 9 AZ .

Remove blow-off valve (2).

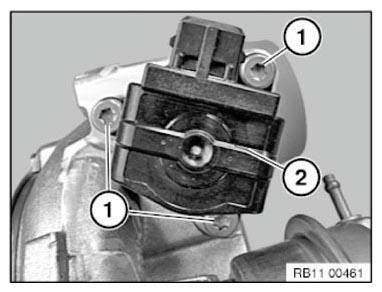

Fig 1: Identifying Blow-Off Valve And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Check VACUUM CONNECTIONS for correct routing.

Check VACUUM SYSTEM FOR LEAKS .

Assemble engine.
