11 61 068 Removing and installing/replacing right intake manifold (N63)

WARNING: This page is about a different car, the 2013 BMW X5, 2012 BMW X5, and 2011 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 0 200

Necessary preliminary tasks:

Remove complete front panel.
Remove complete cooling core with condenser. See 64 53 551 REMOVING AND INSTALLING OR REPLACING CAPACITOR FOR HEATING AND AIR CONDITIONING SYSTEM , 17 11 000 REMOVING AND INSTALLING RADIATOR (N63, S63) , 17 51 020 REMOVING AND INSTALLING OR REPLACING SUPPLEMENTARY COOLANT PUMP FOR INTER COOLER (N63, S63) , 17 11 150 REMOVING AND INSTALLING/REPLACING ENGINE OIL COOLER (N63, S63) , 17 11 035 REMOVING AND INSTALLING/RENEWING FAN COWL WITH ELECTRIC FAN (N63) , 17 13 020 REMOVING AND INSTALLING/REPLACING INTERCOOLER EXPANSION TANK (N63) and 17 11 370 REMOVING AND INSTALLING/REPLACING COOLING COIL FOR POWER STEERING (N63, S63) .
Remove power steering pump . See 32 41 037 REMOVING AND INSTALLING/REPLACING POWER STEERING PUMP FOR HYDRAULIC STEERING GEAR WITH DYNAMIC DRIVE (N63) or 32 41 033 REMOVING AND INSTALLING POWER STEERING PUMP FOR POWER STEERING GEAR WITH ACTIVE FRONT STEERING (N63) with bracket.
Remove right INJECTION PIPE .

Detach engine ventilation hose (1).

Unscrew nuts (2).

Tightening torque: 11 61 1AZ .

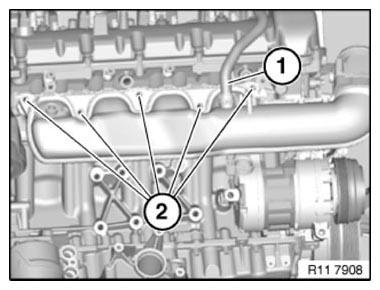

Fig 1: Identifying Engine Ventilation Hose And Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

Fit SPECIAL TOOL 00 0 200 .

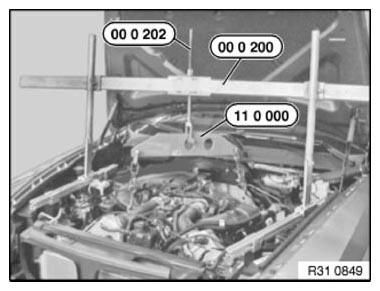

Fig 2: Fitting Special Tool (00 0 200)

Courtesy of BMW OF NORTH AMERICA, INC.

Release nuts on left and right engine support arms.

Raise engine.

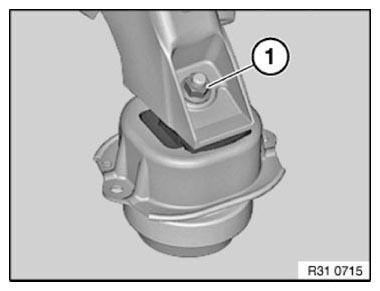

Fig 3: Identifying Nuts On Engine Support Arms

Courtesy of BMW OF NORTH AMERICA, INC.

Remove THROTTLE VALVE (2).

Release screw (1).

Tightening torque: 11 61 2AZ .

Installation:

Replace all profile seals.

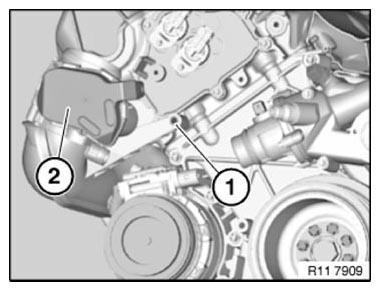

Fig 4: Identifying Throttle Valve And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine and vehicle.

Check INTAKE SYSTEM for leaks.
