11 14 250 Removing and installing/sealing rear coolant end cover (N63)

WARNING: This page is about a different car, the 2013 BMW X5, 2012 BMW X5, and 2011 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

11 4 470 .

WARNING: Risk of scalding!
Only perform this work after engine has cooled down.

Recycling:

Catch and dispose of drained coolant in a suitable collecting vessel.

Observe country-specific waste disposal regulations.

Necessary preliminary work:

Remove FLYWHEEL
Drain COOLANT

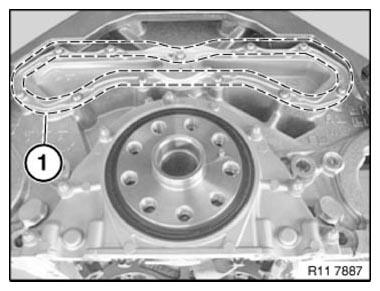

Release all screws in area (1).

Tightening torque: 11 14 5AZ .

Remove end cover.

NOTE: Clean sealing surfaces with special tool 11 4 470 .

Fig 1: Identifying Rear Coolant End Cover Screw Area

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

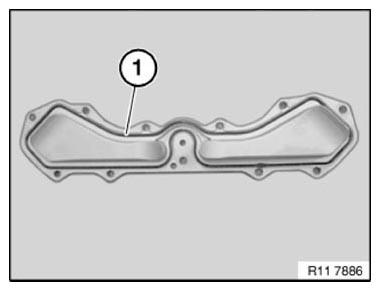

Replace profile seal (1).

Fig 2: Identifying Rear Coolant End Cover Profile Seal

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.
