11 71 508 Replacing exhaust-gas recirculation valve for low pressure (M57T2 SCR)
WARNING: This page is about a different car, the 2013 BMW X5, 2012 BMW X5, and 2011 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary work:
- Remove LOW PRESSURE exhaust-gas recirculation cooler.

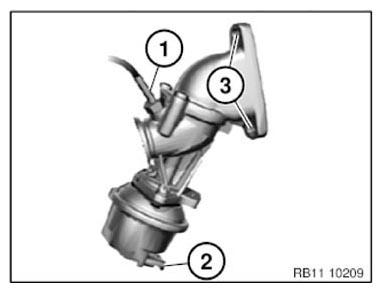

Release plug connection (1) from temperature sensor.
On replacement of exhaust-gas recirculation valve, modify temperature sensor.
Disconnect plug connection (2).
Release screws (3).
Replace gasket.
Tightening torque: 11 71 2AZ .
