11 15 140 Replace oil separator (N63)

WARNING: This page is about a different car, the 2013 BMW X5, 2012 BMW X5, and 2011 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove cylinder head cover . See 11 12 005 REMOVING AND INSTALLING/SEALING LEFT CYLINDER HEAD COVER (N63) or 11 12 006 REMOVING AND INSTALLING/SEALING RIGHT CYLINDER HEAD COVER (N63)

Removal:

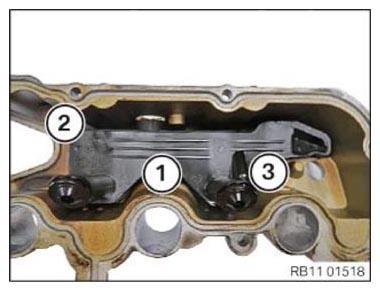

Fig 1: Oil Separator Bolts Tightening/Loosening Sequence

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws in the sequence 3 - 1 .

Remove oil separator.

Illustration: Cylinders 5 to 8.

Installation:

IMPORTANT: Risk of damage!
All engine oil and contamination must be removed from all threaded holes.
Compliance with torque specifications for screw connections is mandatory!

Fig 2: Oil Separator Bolts Tightening/Loosening Sequence

Courtesy of BMW OF NORTH AMERICA, INC.

Install the oil separator with duct.

Parts: Replace screws.

Tighten screws in the sequence 1 - 3 .

Tightening torque: 11 12 11AZ .

Required follow-up work:

Install cylinder head cover
