11 31 005 Checking the camshaft timing (M57T2-SCR)

WARNING: This page is about a different car, the 2013 BMW X5, 2012 BMW X5, and 2011 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

Necessary preliminary work:

REMOVE CYLINDER HEAD COVER

Crank engine at central bolt.

The cams on the camshafts (1) of the 1st cylinder point in the direction of travel to the right.

See Fig 1 M57TU.

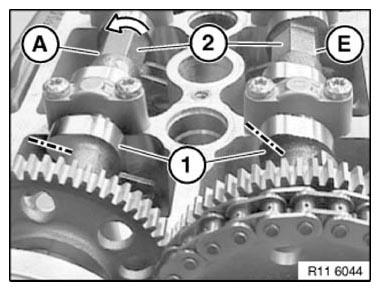

Fig 1: Turning Cams On Camshafts

Courtesy of BMW OF NORTH AMERICA, INC.

Remove protective cap in direction of arrow.

Installation note:

Reinstall protective cap with some grease.

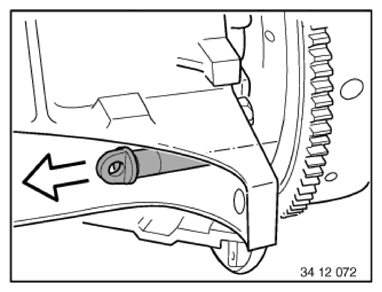

Fig 2: Removing Protective Cap

Courtesy of BMW OF NORTH AMERICA, INC.

Secure the crankshaft in the TDC setting with special tool 11 6 080 .

IMPORTANT: Do not turn the engine back.
Special tool 11 6 080 must be removed before starting engine.

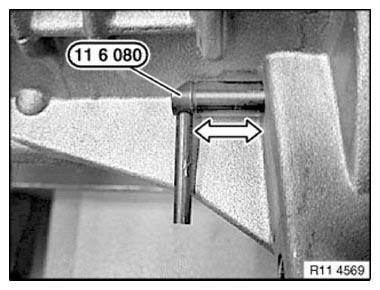

Fig 3: Identifying Special Tool (11 6 080)

Courtesy of BMW OF NORTH AMERICA, INC.

Attach special tool 11 6 321 to the intake camshaft (1).

NOTE: Special tool 11 6 321 must lie flush on cylinder head.

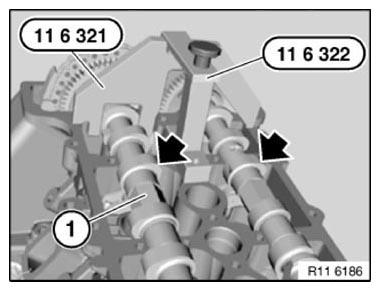

Fig 4: Locating Special Tool 11 6 321 On Intake Camshaft

Courtesy of BMW OF NORTH AMERICA, INC.

For a better overview, this operation is shown without the vacuum pump.

Attach special tool 11 6 321 to the exhaust camshaft (1).

NOTE: Special tool 11 6 321 must lie flush on cylinder head.

If necessary, adjust CAMSHAFT TIMING .

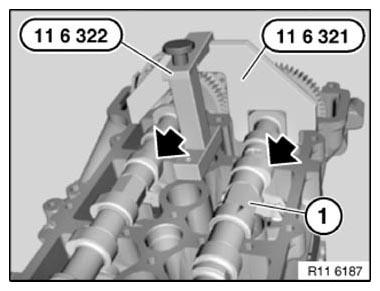

Fig 5: Locating Special Tool 11 6 321 To Exhaust Camshaft

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.
