64 52... Removing and installing compressor bearing support (M57T2)

WARNING: This page is about a different car, the 2013 BMW X5, 2012 BMW X5, and 2011 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove air conditioning COMPRESSOR

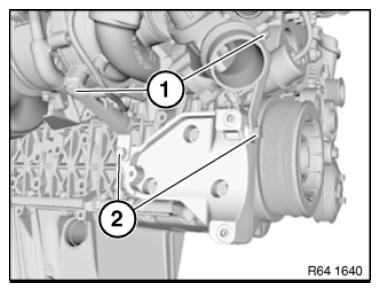

Slacken screws (1)

Unfasten screws (2).

Fig 1: Identifying Air Conditioning Compressor Screws

Courtesy of BMW OF NORTH AMERICA, INC.

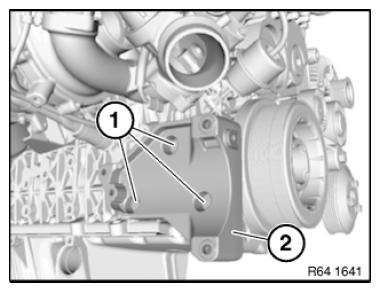

Release screws (1) and remove bearing support (2).

Tightening torque: 64 52 5AZ .

Installation note:

Replace damaged fitting sleeves.

Fig 2: Identifying Bearing Support Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

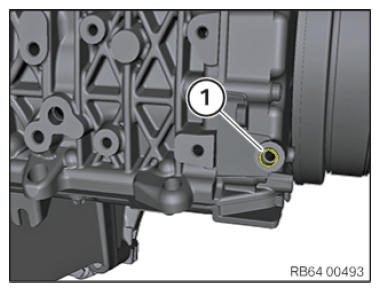

The fitting sleeve (1) must not be damaged or missing.

Fig 3: Identifying Fitting Sleeve

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

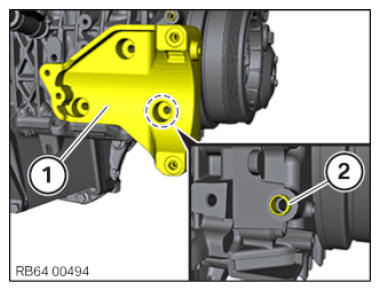

Correctly position and align bearing support (1) on the fitting sleeve (2).

Fig 4: Identifying Bearing Support On Fitting Sleeve

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

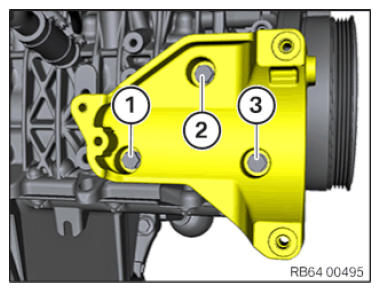

Position screws (1 to 3) in tightening sequence 1, 2, 3.

Tighten screws (1 to 3) in tightening sequence 1, 2, 3.

Tightening torque: 64 52 5AZ .

Fig 5: Compressor Bearing Support Bolts Tightening/Loosening Sequence

Courtesy of BMW OF NORTH AMERICA, INC.
