13 62 610 Replacing crankshaft pulse generator (M47TU/M57TU/M47T2/M57T2)

WARNING: This page is about a different car, the 2013 BMW X5, 2012 BMW X5, and 2011 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Read fault memory of DDE control unit
Remove STARTER MOTOR .

Pull plug (1) off pulse generator.

Detach mating connector (2) from holder.

Unscrew bolt (3).

Remove pulse generator.

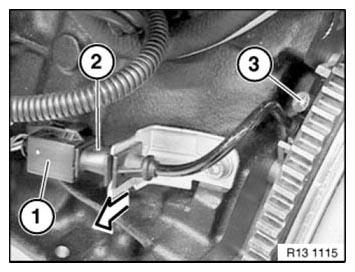

Fig 1: Detaching Mating Connector From Holder

Courtesy of BMW OF NORTH AMERICA, INC.

Clear DDE fault memory.
