12 41 020 Removing and installing/replacing starter motor (M57TU, M57T2)

WARNING: This page is about a different car, the 2013 BMW X5, 2012 BMW X5, and 2011 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Disconnect battery negative terminal.
Remove transmission underbody protection

Slacken nut (1).

Slacken nut (2).

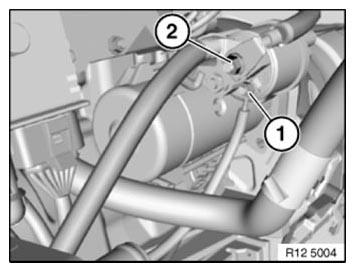

Fig 1: Identifying Starter Motor Nut

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

NOTE: Illustrations show M57.

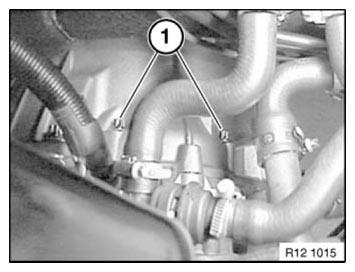

Fig 2: Identifying Starter Motor Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Press starter motor (1) forwards and swivel past engine carrier.

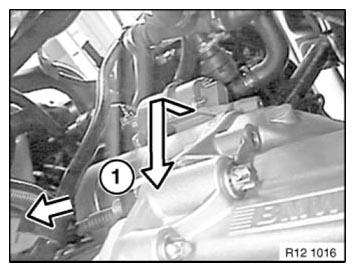

Fig 3: Removing Starter Motor

Courtesy of BMW OF NORTH AMERICA, INC.
