32 41... Replacing Pressure Line For Dynamic Drive (Part 2) (M57T2)

Recycling:

Catch and dispose of hydraulic fluid in a suitable container.

Necessary preliminary tasks:

• Draw off and dispose of hydraulic fluid from fluid reservoir
• Remove underbody protection incl. cover  . See REMOVING AND INSTALLING/REPLACING FRONT ASSEMBLY UNDERSIDE PROTECTION , REMOVING AND INSTALLING/REPLACING REAR UNDERBODY PROTECTION or REMOVING AND INSTALLING/REPLACING LEFT OR RIGHT UNDERBODY PANELLING .
• Remove REINFORCEMENT PLATE
• Partially remove FRONT RIGHT WHEEL ARCH COVER (REAR SECTION)

Release banjo bolt (1).

From build date 10/08, release hexagon socket bolts from flange (1).

Tightening torque: 32 41 11AZ (banjo bolt).

Tightening torque: 32 41 16AZ (hexagon socket bolt).

Seal pressure lines with suitable sealing plugs.

Installation:

Make sure pressure line is laid without tension and with sufficient spacing to adjoining components.

Fig 1: Hexagon Socket Bolts From Flange And Pressure Lines

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1) and remove heat shield (2).

Installation:

Tightening torque: 32 41 14AZ .

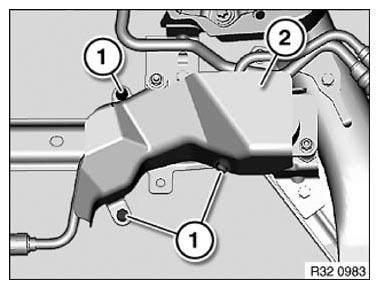

Fig 2: Heat Shield And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Release bolts (1) and remove bracket (2) from front axle carrier.

Installation:

Tightening torque: 32 41 7AZ .

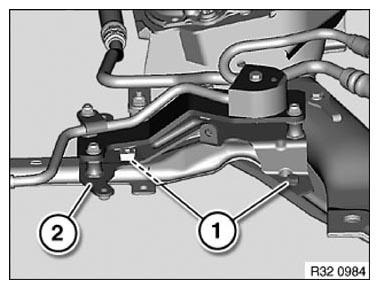

Fig 3: Bracket And Bolts

Courtesy of BMW OF NORTH AMERICA, INC.

Release banjo bolt (1).

Seal pressure lines with suitable sealing plugs.

Remove pressure line (2).

Installation:

Hydraulic lines are not permitted to contact each other or adjoining components.

Tightening torque: 37 14 15AZ .

Fig 4: Pressure Line And Banjo Bolt

Courtesy of BMW OF NORTH AMERICA, INC.

Tightening torque: 32 41 16AZ

Fig 5: Identifying Flange

Courtesy of BMW OF NORTH AMERICA, INC.

After installation:

• Fill and bleed HYDRAULIC SYSTEM
• Check pipe connections for leaks
• Carry out INITIAL DYNAMIC DRIVE OPERATION .
