32 41... Replacing Pressure Line For Dynamic Drive (M57T2)

WARNING: This page is about a different car, the 2013 BMW X5, 2012 BMW X5, and 2011 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Remove PRESSURE LINE (PART 1)  (from power steering pump to junction I on left engine carrier)

Remove PRESSURE LINE (PART 2)  (from junction I to junction II on vehicle underbody on right)

Remove REAR PRESSURE LINE (PART 3)  (from junction II to valve block)

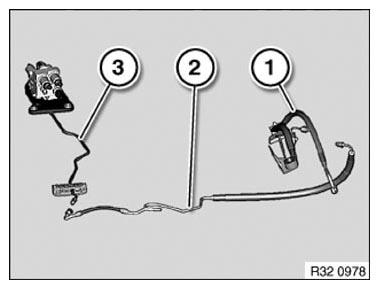

Fig 1: Pressure Line For Dynamic Drive (M57T2)
G09959031Courtesy of BMW OF NORTH AMERICA, INC.
