32 41... Instructions For Using Special Tool 32 4 000

WARNING: This page is about a different car, the 2013 BMW X5, 2012 BMW X5, and 2011 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

Depending on the pressure hose connection on the pump, the special tool 32 4 000 must be assembled.

1 = Connection, pump

2 = Connection, steering gear

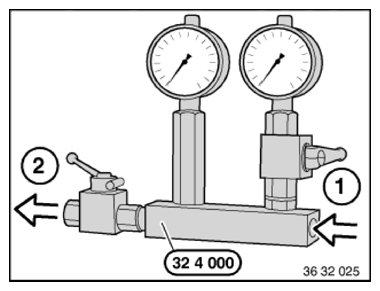

Fig 1: Checking Pressure Hose Connection On Pump

Courtesy of BMW OF NORTH AMERICA, INC.

Pressure hose connection to pump with M14 x 1.5 banjo bolt:

Mount special tool 32 4 004 with banjo bolt (1) M14 x 1.5 and 2 sealing rings to special tool 32 4 000 .

Mount special tool 32 4 011 to pump and connect special tool 32 4 004 .

Mount special tool 32 4 006 /32 4 012 to special tool 32 4 000 and connect pressure hose with banjo bolt M14 x 1.5 and 2 sealing rings.

Fig 2: Connecting Pressure Hose With Banjo Bolt

Courtesy of BMW OF NORTH AMERICA, INC.

Pressure hose connection to pump with M16 x 1.5 banjo bolt:

Mount special tool 32 4 004 with banjo bolt (1) M14 x 1.5 and 2 sealing rings to special tool 32 4 000 .

Mount special tool 32 4 005 to pump and connect special tool 32 4 004 .

Mount special tool 32 4 006 to special tool 32 4 000 and connect pressure hose with banjo bolt M16 x 1.5 and 2 sealing rings.

Fig 3: Checking Pressure Hose Connection To Pump

Courtesy of BMW OF NORTH AMERICA, INC.

Pressure hose connection to pump with M16 x 1.5 retaining screw:

Mount special tool 32 4 004 with banjo bolt (1) M14 x 1.5 and 2 sealing rings to special tool 32 4 000 .

Connect special tool 32 4 004 to pump.

Mount special tool 32 4 006 /32 4 005 to special tool 32 4 000 and connect pressure hose.

Fig 4: Connecting Pressure Hose

Courtesy of BMW OF NORTH AMERICA, INC.
