0492057 324000 Device AM

WARNING: This page is about a different car, the 2013 BMW X5, 2012 BMW X5, and 2011 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: For checking pump pressure in hydraulic steering system

Consisting of:

11 = 0494385 Adapter
NOTE: (Adapter M14 x 1.5)

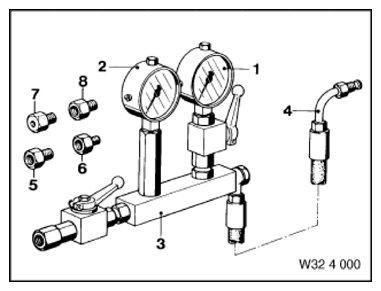

Fig 1: Device (0492057)
Courtesy of BMW OF NORTH AMERICA, INC.
12 = 0494386 Adapter
NOTE: (Adapter M16 x 1.5)
1 = 0492058 Pressure gauge
NOTE: (Pressure gauge 16 bar)
2 = 0492059 Pressure gauge
NOTE: (Pressure gauge 160 bar)
3 = 0492060 Device
NOTE: (Testing device without pressure gauge) discontinued, available as part of set of special tools only
4 = 0492061 Line
5 = 0492062 Connector
NOTE: For screwing into the power steering pump/Series: E23, E46, E52, E53, E64, E65, E66, E85
6 = 0492063 Connector
NOTE: For screwing into testing device 32 4 003/Model series: E23, E46, E52, E53, E64, E65, E66, E85
7 = 0492064 Connector
NOTE: (Connection piece M18 x 1.5) For screwing into pressure regulator/Model series: E32, E34
8 = 0492065 Connector
NOTE: (Connection piece M14 x 1.5) For screwing into testing device/Model series: E32, E34 Deletion, only available via tool set
9 = 0493264 Valve
NOTE: (Ball valve) Deletion, only available via tool set
