64 22 118 Replace fresh air grille, left

Necessary preliminary tasks:

Removal:

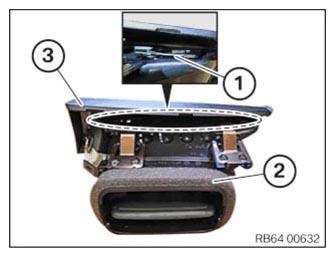

Release latch mechanisms (1) in marked area.

Remove fresh air grille (2) from decorative strip (3).

G12959368Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Position fresh air grille (2) correctly and engage in decorative strip (3).

NOTE: Latch mechanisms on decorative strip (2) must not be faulty.
Make sure fresh air grille (1) is securely seated in decorative strip (2).
G12959368Courtesy of BMW OF NORTH AMERICA, INC.

Required reworking:
