51 45 370 Removing and installing decorative strip on left dashboard

Special tools required:

• 00 9 325

When working on trim panel components, make sure that the sensitive surfaces are not scratched or damaged.

Removal:

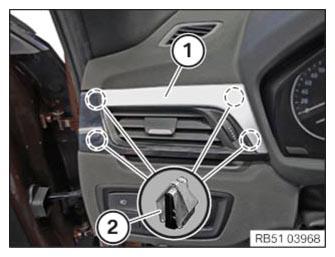

Lift decorative strip (1) out of clamps (2) using special tool 00 9 325  and remove.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Replacement:

Remount LEFT FRESH AIR GRILLE

Attach decorative strip (1) and engage in clamps (2).

Courtesy of BMW OF NORTH AMERICA, INC.
