24 35 512 Replace wiring harness in the automatic transmission (AISIN F22AW)
WARNING: This page is about a different variant/trim than selected.
IMPORTANT:
After completion of work, check TRANSMISSION OIL LEVEL.
Make a note of drained ATF quantity.
Make a note of drained ATF quantity.
IMPORTANT:
Use only the approved automatic transmission oil in this automatic transmission. Refer to: AUTOMATIC TRANSMISSION - OPERATING FLUIDS
Otherwise the automatic transmission may incur extensive damage!
Do not drain oil before the transmission has cooled down.
Otherwise the automatic transmission may incur extensive damage!
Do not drain oil before the transmission has cooled down.
Necessary preliminary tasks:
- Remove the HYDRAULIC SHIFT UNIT .
Removal:

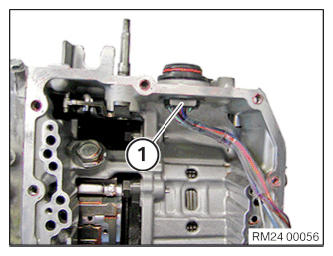

Disconnect connector (1).

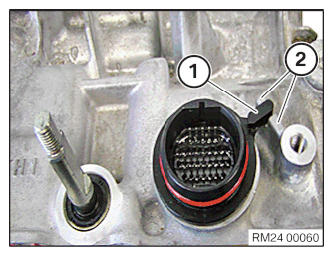

Unlock slide (1).

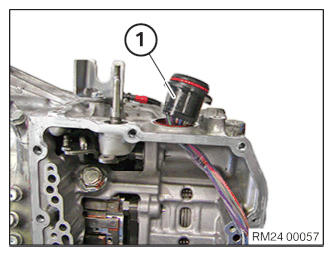

Pull wiring harness (1) out of transmission housing.
Installation:

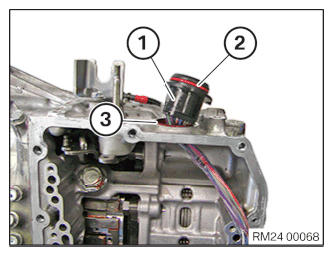

Parts: Replace gaskets (2) and (3).

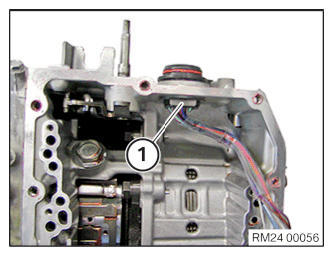

Insert wiring harness (1) into transmission.
IMPORTANT:
Connector of lug (1) must be fitted in transmission recess (2).
Parts: Replace slide (1).
Lock slide (1).
Connect and lock connector (1).
Required follow-up work:
- Install the HYDRAULIC SHIFT UNIT .
