12 51 240 Replacing the engine sensor system module 2 wiring harness section (B46, B48)

WARNING: This page is about a different variant/trim than selected.

Attention!

Read and comply with notes on Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DISCHARGE (ESD PROTECTION) !

Necessary preliminary work:

Removal:

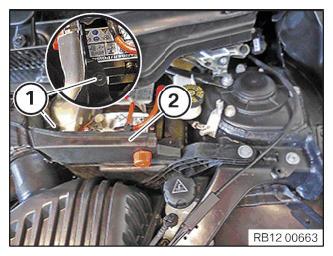

Release expanding rivet (2).

Undo the bolt (1) and remove the cover (3).

Courtesy of BMW OF NORTH AMERICA, INC.

Loosen screw (1).

Lay the cover (2) of the positive battery connection point to one side.

Courtesy of BMW OF NORTH AMERICA, INC.

Release the screws along the arrows and remove the tension strut (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock and remove cover (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock and pull off all connectors (1) in the direction of arrow at the control unit.

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock the lock (2) and release the cable clip (1) and place to one side.

Courtesy of BMW OF NORTH AMERICA, INC.

Release the cable clip (2) from cover (1) and lay to one side.

Feed out cover (1) and remove.

Courtesy of BMW OF NORTH AMERICA, INC.

Courtesy of BMW OF NORTH AMERICA, INC.

Overview of engine sensor system module 2 wiring harness section

Unlock and disconnect following connectors and lines	Note
Unlock and disconnect connector from DME control unit
Release connector from intake camshaft sensor and pull off
Release connector from hot film air mass meter and pull off
Release connector from high pressure sensor and pull off
Release connector from exhaust camshaft sensor and pull off
Unlock connector on high pressure pump and disconnect
Unlock connector of monitoring sensor and pull off
Release connector from control sensor and pull off
Unlock connector on exhaust turbocharger and disconnect
Unlock connector on heating element and disconnect

Release wiring harness from clips and retainers.

Feed out wiring harness and remove.

Installation:

Route and install wiring harness.

Plug in all connectors as specified in table.

All connectors must audibly engage.

Connect all connectors (1) at the control unit in the direction of arrow.

All connectors (1) must engage audibly.

Courtesy of BMW OF NORTH AMERICA, INC.

Lock the cover (1) in the lock (2).

Lock (2) must snap audibly into place.

Courtesy of BMW OF NORTH AMERICA, INC.

Feed in and install the cover (1).

Attach the cable clip (2) to the cover (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Feed in the cable clip (1) and lock it in the lock (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Install the tension strut (1) and tighten the screws along the arrows.

Tightening torque 17 10 8AZ

Courtesy of BMW OF NORTH AMERICA, INC.

Install the cover (2) of the positive battery connection point.

Tighten screw (1).

Tightening torque 17 10 10AZ

Courtesy of BMW OF NORTH AMERICA, INC.

Install the cover (3) and tighten the screw (1).

Tightening torque 17 10 10AZ

Install expanding rivet (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:
