Installing the coolant feed line on the right for the turbocharger

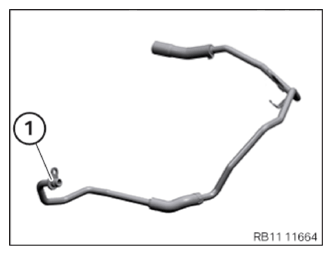

• Replace O-ring (1).

  Parts:  O-ring

  Courtesy of BMW OF NORTH AMERICA, INC.

• Position the coolant feed line (2) at the turbocharger.
• Tighten down screw (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE TURBOCHARGER ON THE RIGHT FOR CYLINDERS 1 THROUGH 6 .
• Refer to FASTENING THE COOLANT FEED LINE FOR THE TURBOCHARGER ON THE RIGHT .
• Refer to INSTALLING RIGHT CLEAN AIR PIPE .
• Refer to INSTALLING TOP RIGHT CLEAN AIR PIPE .
• Refer to INSTALLING THE ALTERNATOR .
• Refer to INSTALLING THE HOLDER FOR THE DIGITAL MOTOR ELECTRONICS CONTROL UNIT ON THE RIGHT .
• Refer to INSTALLING THE DME CONTROL UNIT FOR CYLINDERS 1 TO 6 .
• Refer to CONNECTING ALL THE CONNECTORS TO THE DME CONTROL UNIT FOR CYLINDERS 1 TO 6 AND TO THE INTEGRATED POWER SUPPLY MODULE (PDM) .
• Refer to INSTALLING COVER FOR THE RIGHT DME CONTROL UNIT .
• Refer to INSTALLING THE RIGHT ENGINE MOUNT HOLDER .
• Refer to MOUNTING THE ENGINE OIL LINE ON THE ENGINE .
• Refer to INSTALLING BEARING BRACKET .
• Refer to INSTALLING THE CATALYTIC CONVERTER FOR CYLINDERS 1 TO 6 (FRONT AXLE REMOVED) .
• Refer to CONNECTING THE RIGHT OXYGEN SENSOR .
• Refer to INSTALLING EXHAUST SYSTEM .
• Refer to INSTALLING FRONT AXLE COMPLETELY .
• Refer to SECURING THE HOLDER ON THE FRONT AXLE SUPPORT .
• Refer to RAISING FRONT AXLE SUPPORT .
• Refer to TIGHTENING THE BOLTS ON THE FRONT AXLE SUPPORT .
• Refer to ATTACHING SWIVEL BEARING IN INSTALLATION POSITION .
• Refer to SECURING THE AIR SUSPENSIONS STRUTS IN THE FRONT .
• Refer to REMOVING THE MOBILE LIFTING TABLE .
• Refer to ATTACHING COOLANT HOSES TO FRONT SUBFRAME .
• Refer to ATTACHING THE THERMOSTAT OR TRANSMISSION OIL COOLER LINE ON THE FRONT SUBFRAME .
• Refer to LOWERING THE ENGINE AND DETACHING THE ENGINE BRIDGE .
• Refer to ATTACHING THE UNIVERSAL JOINT TO STEERING GEAR .
• Refer to INSTALLING THE UNIVERSAL JOINT AT THE BOTTOM OF THE STEERING SHAFT .
• Refer to INSTALLING THE OUTPUT SHAFTS .
• Refer to IF INSTALLED: CONNECTING THE CONNECTOR OF THE ACTIVE STABILIZER .
• Refer to IF INSTALLED: SECURING THE LINE FOR THE VERTICAL ACCELERATION SENSOR ON THE RIGHT AND LEFT .
• Refer to ATTACHING THE CABLE OF THE WHEEL RPM SENSOR ON THE LEFT AND RIGHT .
• Refer to INSTALLING THE BRAKE CALIPER AT THE FRONT LEFT AND RIGHT .
• Refer to SECURING THE RIGHT AND LEFT OUTPUT SHAFTS ON THE WHEEL BEARING .
• Refer to IF INSTALLED: INSTALLING THE SILENCER OF THE STATIONARY HEATING .
• Refer to INSTALLING THE WHEEL ARCH COVER ON THE FRONT LEFT AND BOTTOM RIGHT .
• Refer to INSTALLING LEFT AND RIGHT BRAKE VENTILATION DUCT .
• Refer to SECURING THE WIRING HARNESS FOR THE EPS ON THE FRONT AXLE SUPPORT .
• Refer to INSTALLING THE REINFORCEMENT STRUT ON THE RIGHT ENGINE MOUNT .
• Refer to INSTALLING THE COVER OF THE STEERING ASSEMBLY ON THE LEFT AND RIGHT .
• Refer to INSTALLING THE STIFFENING PLATE .
• Refer to INSTALLING THE UNDERBODY PROTECTION OF THE STEERING GEAR OR THE FRONT THRUST FIELD .
• Refer to INSTALLING THE FRONT UNDERBODY PROTECTION OR FRONT THRUST FIELD .
• Refer to INSTALLING THE FRONT LEFT AND RIGHT WHEELS .
• Refer to REMOVING THE REAR TOP CROSS CONNECTION .
• Refer to INSTALLING THE DRIVE BELT FOR ALTERNATOR 2 AND THE AIR CONDITIONING COMPRESSOR .
• Refer to CHECKING THE DRIVE BELT FOR ALTERNATOR 2 .
• Refer to INSTALLING CHARGE AIR PIPE ON LEFT .
• Refer to REMOVING THE PROTECTIVE PLATE AT THE RADIATOR .
• Refer to INSTALLING FAN COWL .
• Refer to INSTALLING THE REAR TOP CROSS CONNECTION .
• Refer to INSTALLING LEFT INTAKE PORT .
• Refer to INSTALLING RIGHT AIR DUCT .
• Refer to INSTALLING THE LEFT-HAND AIR DUCT .
• Refer to INSTALLING THE CENTER COWL UPPER PART .
• Refer to INSTALLING WINDSHIELD PANEL COVER .
• Refer to INSTALLING LEFT AND RIGHT WIPER ARM .
• Refer to INSTALLING TENSION STRUT ON SHOCK TOWER .
• Refer to INSTALLING THE FRONT HOOD SEAL AT THE REAR .
• Refer to INSTALLING THE MOUNT OF THE HOOD SEAL .
• Refer to INSTALLING THE REAR RIGHT ENGINE COMPARTMENT COVER .
• Refer to INSTALLING THE COVER OF THE ENGINE COMPARTMENT ON THE REAR LEFT .
• Refer to INSTALLING LEFT INTAKE SILENCER HOUSING .
• Refer to INSTALLING ACOUSTIC COVER .
• Refer to INSTALLING FANFARE HORN, RIGHT .
• Refer to INSTALLING THE FANFARE ON THE LEFT SIDE .
• Refer to INSTALLING THE CENTER TOP CROSS CONNECTION .
• Refer to INSTALLING BOTH HEADLIGHTS .
• Refer to INSTALLING BUMPER COVER, FRONT .
• Refer to INSTALLING FRONT SECTION OF THE FRONT WHEEL ARCH COVER (PARTIALLY REMOVED) .
• Refer to INSTALLING FRONT ORNAMENTAL GRILLE .
• Refer to INSTALLING THE COVER OF THE ENGINE COMPARTMENT CENTER .
• Refer to CONNECTING ALL BATTERY GROUND LEADS .
• Refer to ADJUSTING HEADLIGHTS .
• Refer to CHECKING THE COOLANT LEVEL IN THE HIGH-TEMPERATURE COOLANT CIRCUIT AND TOPPING UP AS NEEDED .
• Refer to TAKING HOOD OUT OF THE SERVICE POSITION .
