11 14 015 Removing and installing/replacing sealing cap for oil pump chain tensioner (N55)

Special tools required:

Necessary preliminary work:

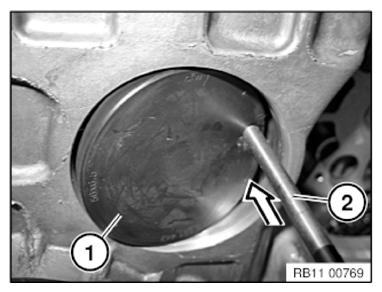

Drive out sealing cap (1) with a suitable punch (2) in direction of arrow.

NOTE: The sealing cap is driven out diagonally during this operation.

Fig 1: Removing Sealing Cap

Courtesy of BMW OF NORTH AMERICA, INC.

Removing sealing cap:

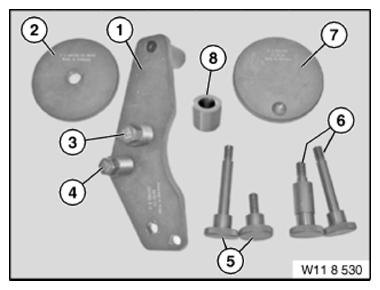

Prepare special tool 11 8 530 .

Remove special tool 11 8 533 from special tool 11 8 532 and 11 8 534 .

Special tool 11 8 536 is not required.

Fig 2: Identifying Special tool 11 8 536

Courtesy of BMW OF NORTH AMERICA, INC.

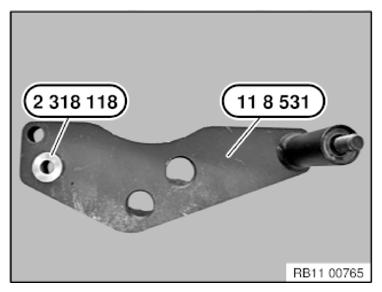

Special tool 2 318 118 is magnetic.

Secure special tool 2 318 118 on special tool 11 8 531 (refer to Fig 3).

Fig 3: Identifying Special Tool 2 318 118

Courtesy of BMW OF NORTH AMERICA, INC.

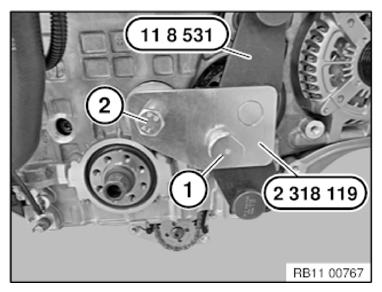

Screw back screw (2) on special tool 2 318 119 .

Install special tool 2 318 119 with screw (1) on special tool 11 8 531 .

Fig 4: Identifying Special Tool 2 318 119

Courtesy of BMW OF NORTH AMERICA, INC.

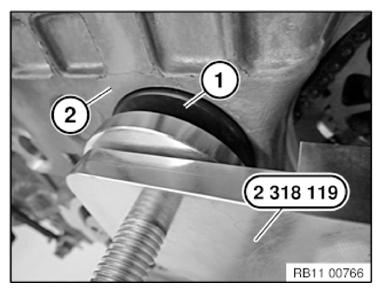

Position sealing cap (1) on crankcase (2).

Fig 5: Positioning Sealing Cap On Crankcase

Courtesy of BMW OF NORTH AMERICA, INC.

Installing sealing cap:

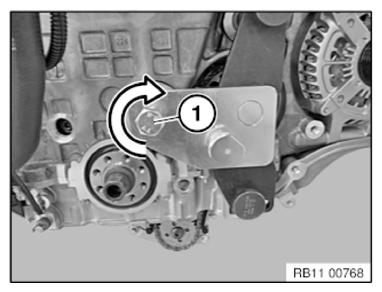

Screw in screw (1) on special tool 2 318 119 up to limit position.

Tightening torque 20 Nm.

Fig 6: Installing Sealing Cap Using Special Tool 2 318 119

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.
