52 24 010 Removing and installing/replacing backrest

Necessary preliminary tasks:

Release screws (1) on backrest.

Tightening torque 52 24 07AZ .

Release screws (2) on seatbelt anchor fitting.

Tightening torque 72 11 21AZ .

NOTE: End of work when removing side trim panel and/or storage shelf.

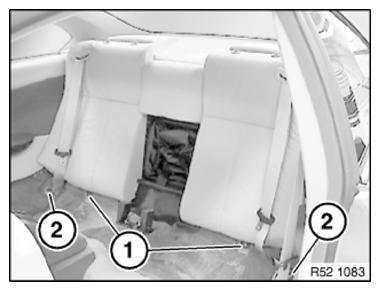

Fig 1: Identifying Seatbelt Anchor Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock detent lugs (1) on back and remove seatbelt outlet trim (2).

Installation note:

Replace seatbelt outlet trims in event of faulty detent lugs.

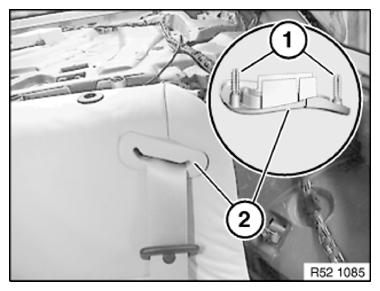

Fig 2: Identifying Seatbelt Outlet Trim And Detent Lugs

Courtesy of BMW OF NORTH AMERICA, INC.

Feed seat belt (1) out of seat belt cover (2) and backrest (3).

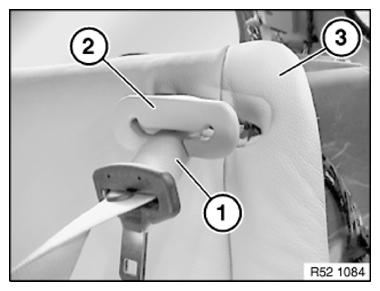

Fig 3: Feeding Seat Belt Of Seat Belt Cover And Backrest

Courtesy of BMW OF NORTH AMERICA, INC.
