52 24 390 Removing and installing/replacing rear head restraints

NOTE: Force must be applied to remove the head restraint.

Pull upwards and out head restraint (1) firmly.

Installation note:

Press head restraint (1) downwards until it engages audibly in notches.

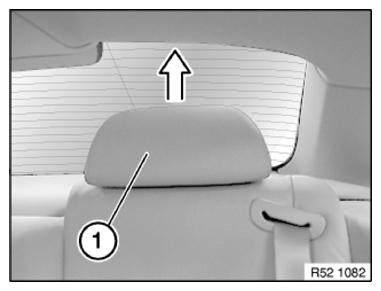

Fig 1: Pulling Head Restraint

Courtesy of BMW OF NORTH AMERICA, INC.
