51 47 151 Removing and installing/replacing left luggage compartment wheel arch panel

Necessary preliminary work:

• Remove COVER FROM TAIL PANEL
• Remove TRIM FOR TAILGATE HINGE  on left

Version without through-loading system:

• Remove backrest for rear seat

Version with through-loading system:

• Reposition left rear seat backrest

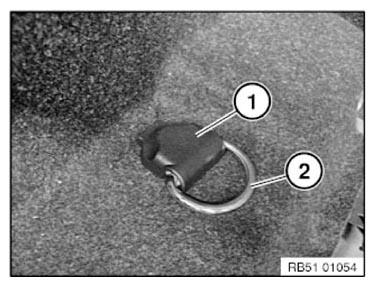

Lever out cover (1) and release screw underneath.

Tightening torque: 51 47 1AZ .

Remove lashing eye (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Courtesy of BMW OF NORTH AMERICA, INC.

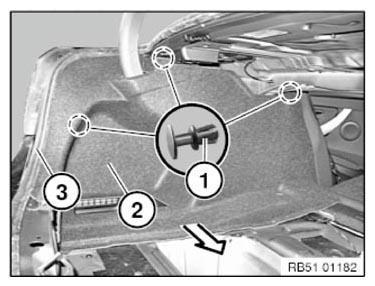

Release expanding rivets (1).

Feed out luggage compartment wheel arch panel (2) in direction of arrow

If necessary, unlock plug connection for charging socket and disconnect.

Installation note:

Luggage compartment wheel arch panel (2) must fit correctly under tailgate rubber seal (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement and version with charging socket:

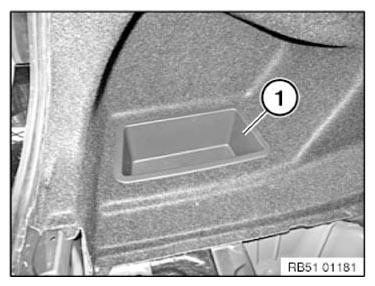

Lever out charging socket (1) in direction of arrow.

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement (depending on version):

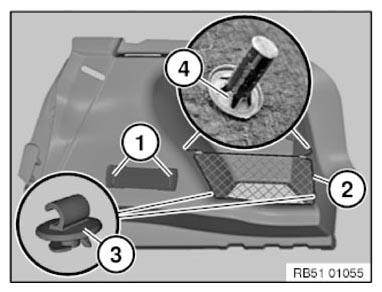

Unclip tensioning strap (1).

Detach luggage compartment net (2) at holder (3).

Release lock washer (4) and feed out luggage compartment net (2).

Unscrew holder (3).

If necessary, apertures for tensioning strap (1) and luggage compartment net (2) must be cut out at mark on rear side.
