51 46 050 Removing and installing/replacing top cover on tail panel
Necessary preliminary tasks:
- Remove LUGGAGE COMPARTMENT FLOOR TRIM PANEL (luggage compartment mat)

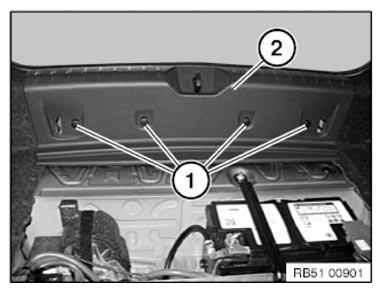

Release expanding rivets (1).
Lever out trim (2) inwards/upwards.
Installation note:
Make sure edge protection for tailgate (2) is correctly seated on cover.
