51 43 148 Removing and installing or replacing trim panel on left or right door post (top)
Necessary preliminary tasks:
Version with B-pillar lighting:
Unfasten plug connection (1) and disconnect.
Release cable clip (2) from B-pillar.

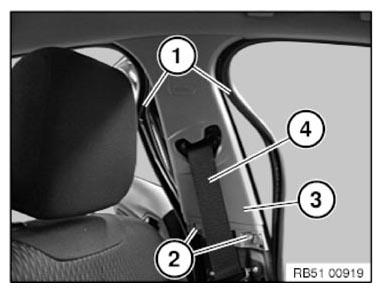

Detach EDGE PROTECTION (1) in area of trim panel (3).
Release trim panel (3) at clips (2) and feed out toward the bottom.
Installation note:
Make sure edge protection (1) is correctly seated on trim panel (3).
Complete removal only :
Release BELT SCREW on front seat.
Feed out seat belt strap (4) from trim panel (3).
Installation note:

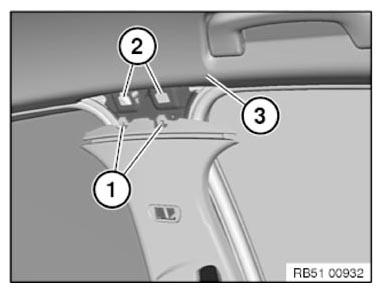

Feed guides (1) correctly into holder (2).
Make sure trim panel (3) is correctly fitted on roofliner.
Installation note:

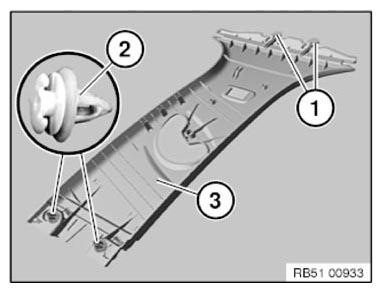

Guides (1) and clips (2) on trim panel (3) must not be missing or damaged.
On replacement with B-pillar lighting version:
Remount LED .
