51 43 150 Removing and installing or replacing trim for left or right door pillar (bottom)

Necessary preliminary work:

Release trim panel (2) out of clips (1) at bottom.

Feed out trim panel (2) toward the bottom from door sill cover strip (3).

Courtesy of BMW OF NORTH AMERICA, INC.

Partially detach EDGE PROTECTION in area of B-pillar trim panel.

Carefully feed out bottom trim panel (1) from trim panel (2).

Installation note:

Ensure edge protection is correctly positioned.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

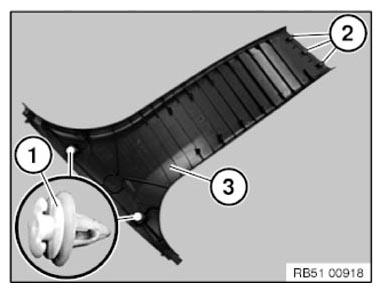

Replace faulty clamps (1).

Guides (2) on trim panel (3) must not be damaged or missing.

Courtesy of BMW OF NORTH AMERICA, INC.
