51 43 070 Removing and installing/replacing side trim panel, footwell, on A-pillar, left

Necessary preliminary tasks:

• Remove FRONT DOOR SILL COVER STRIP (INSIDE)
• Remove TRIM PANEL FOR PEDAL MECHANISM

Detach EDGE PROTECTION  (1) in area of side trim panel (2).

Release screw (3).

Remove engine compartment lid release lever (4) from side trim panel (2).

Installation note:

Make sure edge protection (1) is correctly seated.

Courtesy of BMW OF NORTH AMERICA, INC.

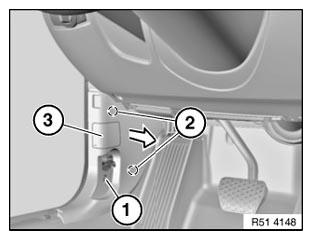

Release screw (1).

Unclip side trim panel (3) in direction of arrow from retaining points (2).

If necessary, disconnect associated plug connection and remove side trim panel (3).

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

If necessary, lever out clamps (1) remaining in bore.

Replace faulty clips (1).

Position side trim panel (2) pre-installed with clips (1) on associated bore holes and clip into place.

Replacement:

Modify REAR LID UNLOCKING SWITCH , if applicable.

Courtesy of BMW OF NORTH AMERICA, INC.
