51 41 060 Removing and installing or replacing armrest on door trim panel, front left or right

Necessary preliminary tasks:

Remove FRONT DOOR HANDLE
Remove SWITCH COVER

NOTE: Armrest is welded to door trim panel only on initial installation. The armrest is screw-connected on second installation. If necessary, release screws instead of welding spots.

NOTE: Risk of damage!
To avoid damaging the contact surface, only drill down to door trim panel area (2)

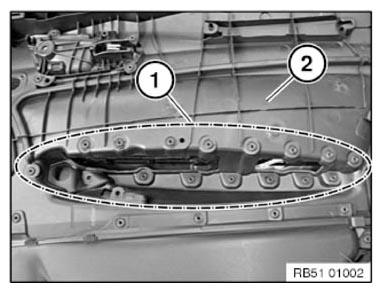

Drill out all welding spots in marked area (1) on door trim panel (2) with 8 mm dia. welding spot drill bit.

Remove welding remains on door trim panel (2) with scalpel (for heavy duty use).

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

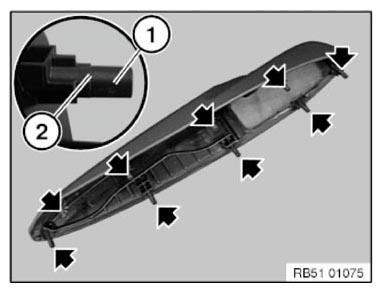

Saw off all welding pins (1) along molding (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Insert armrest in door trim panel.

Installation note:

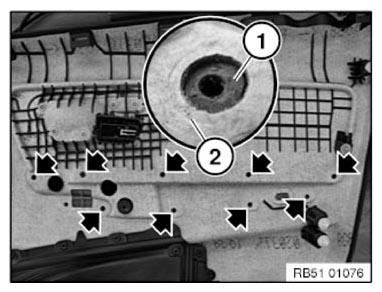

Welding pins (1) are not to protrude over door trim panel (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

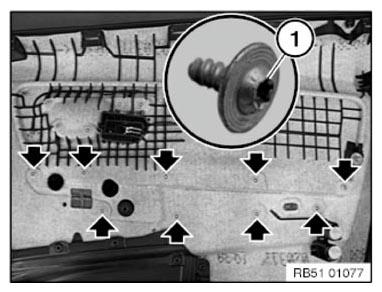

Secure armrest with repair screws (1).

Tightening torque: 51 41 4AZ .
