51 41... Removing and installing/replacing switch cover on left or right front door trim panel
When working on trim panel components, make sure that visible surfaces are not scratched or damaged (e.g. by sharp-edged tools).
Necessary preliminary tasks:
- Remove COVER ON DOOR HANDLE

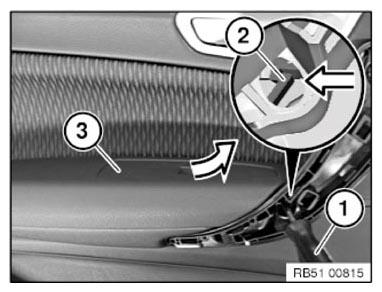

Use a suitable tool (1) to release latch mechanism (2) of switch cover (3) in direction of arrow.
Unclip switch cover (3) from door trim panel towards front/top.
Disconnect plug connection and remove switch cover (3).
Installation note:
The following parts must not be missing or damaged:
- Catch
- Retaining clips
- Guides
Replacement:

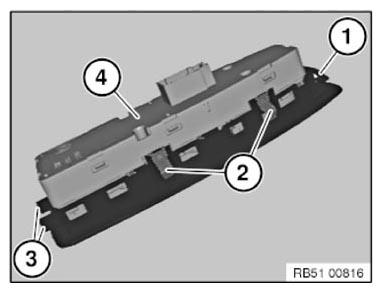

Remount switch for power window (4). Refer to 61 31 117 REMOVING AND INSTALLING/REPLACING POWER WINDOW SWITCH (DRIVER'S SIDE) or 61 31 118 REPLACING THE POWER WINDOWS REGULATOR ON THE PASSENGER'S SIDE .
