51 34 160 Removing and installing/replacing housing cover on inner left or right door window frame

Necessary preliminary tasks:

• Open side window
• Remove REAR DOOR TRIM PANEL

Version with roller sunblind  :

• Remove ROLLER SUNBLIND  from fixed side window

Version with roller sunblind:

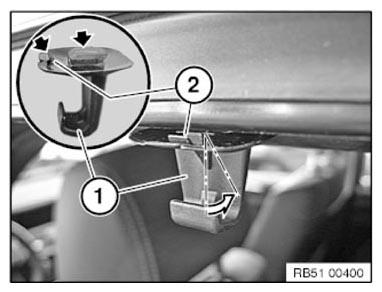

Carefully press hook (1) down and inwards using your thumb until the latch mechanism (2) becomes visible as a result of the distortion.

In this position, pull off hook (1) towards the outside.

Courtesy of BMW OF NORTH AMERICA, INC.

Version with roller sunblind:

Installation note:

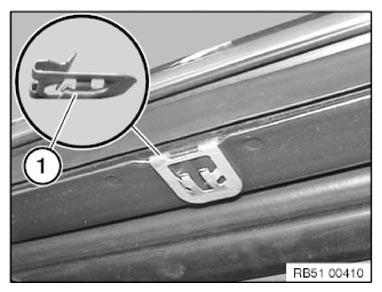

Retaining clip (1) must not be bent or damaged.

Courtesy of BMW OF NORTH AMERICA, INC.

Pry off weather strip (1) towards the top.

Courtesy of BMW OF NORTH AMERICA, INC.

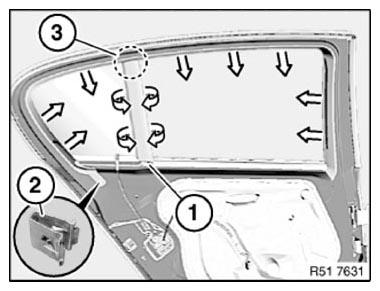

Release cover (1) at the clamp (2).

Unclip or lever out remaining cover (1) in direction of arrow and remove.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

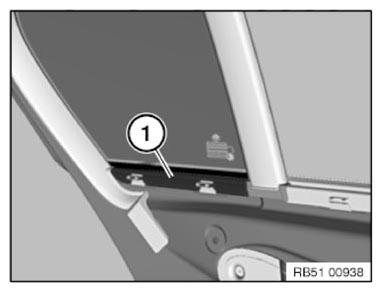

Feed cover on window frame (2) correctly into the gap of the rubber window seal (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

The following parts of cover (1) must not be missing or damaged:

1. 2 Connection point
2. 3 Clamps (mount on door if necessary)
3. 4 Guides

Courtesy of BMW OF NORTH AMERICA, INC.
