51 33 000 Removing and installing (replacing) power window regulator in left or right front door

Necessary preliminary tasks:

Removal:

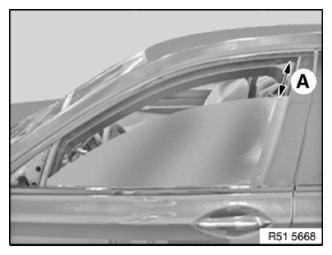

Side window glass must be opened to dimension (A).

A= 145 mm

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Risk of damage!

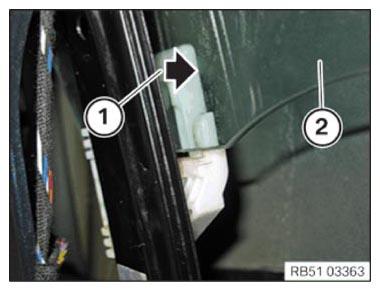

Do not bend mounting clips (1) too far.

Carefully unlock power window mounting clips (1) in direction of arrow.

Gently press door window glass (2) upwards to snap retaining lug completely out of door window glass bore hole (2).

Courtesy of BMW OF NORTH AMERICA, INC.

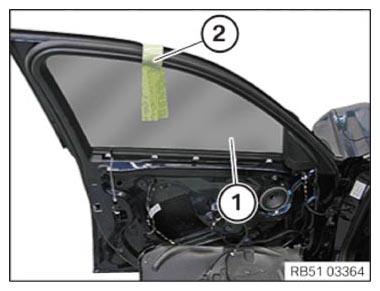

Slide door window glass (1) fully upwards and fix in the window frame with adhesive tape (2).

Courtesy of BMW OF NORTH AMERICA, INC.

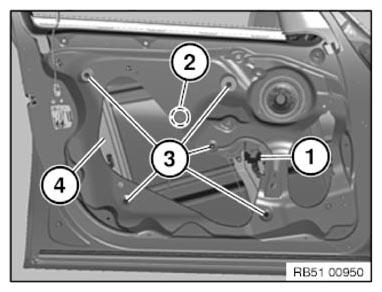

Unfasten plug connection (1) and disconnect.

Release cable from holder in area (2).

Release nuts (3) and feed out power window regulator (4).

Tightening torque: 51 33 2AZ .

Replacement

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Feed in power window regulator (4) and secure nut (3).

Tightening torque: 51 33 2AZ .

Lock plug connection (1).

Clip in cable in area (2).

Courtesy of BMW OF NORTH AMERICA, INC.

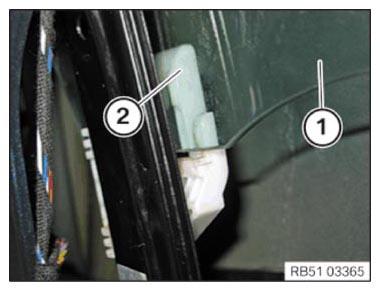

Gently press window glass (1) into the latch mechanism (2) towards bottom.

NOTE: Make sure the retaining lugs are correctly engaged in the door window glass bore hole.

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:
