51 21 225 Removing and installing or replacing inside door opener in left or right front door

Necessary preliminary tasks:

Remove front DOOR TRIM PANEL

NOTE: Graphic is similar.

Lever out lock (2)

Pull off Bowden cable housing (3) towards rear/top - the Bowden cable feeds out of its own accord in the process.

Installation note:

To install the Bowden cable, press inner door handle (1) opposite to direction of arrow.

G04752630

Courtesy of BMW OF NORTH AMERICA, INC.

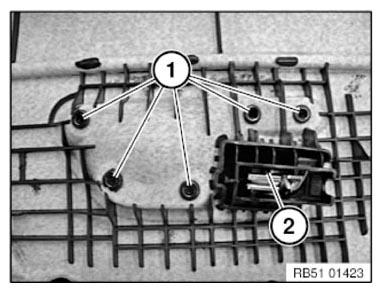

Drill out welding spots (1) on door opener (2) with 8 mm dia. weld spot drill bit and remove door opener (2).

NOTE: Door opener is welded to door trim panel only on initial installation. The door opener is screw-connected on second installation. If applicable, release screws instead of welding spots.

G10097080

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

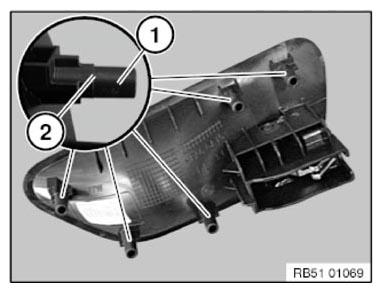

Saw off welding pins (1) along edge (2).

G10097081

Courtesy of BMW OF NORTH AMERICA, INC.

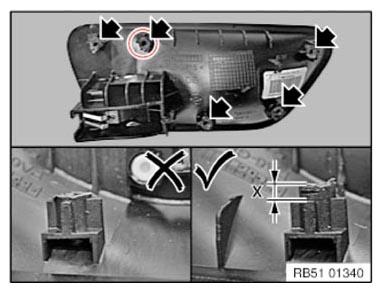

NOTE: Increased risk of damage through welding pin marked red.
Welding pins are not to be completely shortened.
When welding pins are completely shortened, repair screw may leave a pressure mark in the visible area.
Welding pins must protrude by at least dimension (x).
x = 2 mm

G10097082

Courtesy of BMW OF NORTH AMERICA, INC.

Insert door opener in door trim panel.

Installation note:

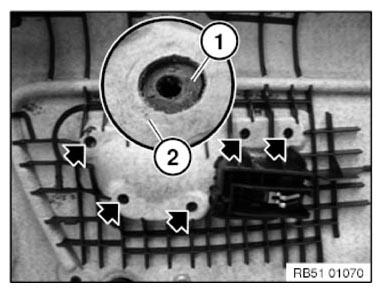

Welding pins (1) are not to protrude over door trim panel (2).

G10097083

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

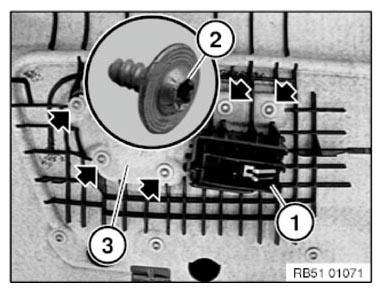

Secure door opener (1) on door trim panel (3) with repair screw (2).

Tightening torque: 51 41 2AZ .

G10097084

Courtesy of BMW OF NORTH AMERICA, INC.
