52 26 011 Removing and installing/replacing backrest for left rear seat

Necessary preliminary tasks:

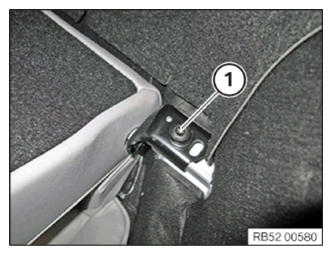

Release screw (1).

Tightening torque: 52 26 01AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

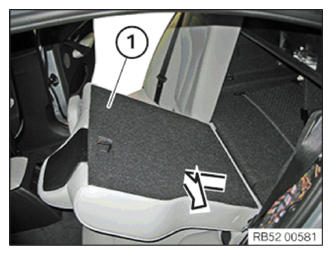

Tilt backrest (1) forwards slightly.

Pull backrest (1) forwards and outwards from the center mount.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

The plastic bush (1) in the right backrest frame may slide during removal of the left backrest.

Make sure plastic bush (1) is fitted correctly in the right backrest frame.

The plastic bush (1) must be retained in the backrest frame.

If applicable, clip the plastic bush (1) in from the outside in.

Courtesy of BMW OF NORTH AMERICA, INC.
