52 26 008 Removing and installing/replacing backrest side section on left or right rear seat backrest

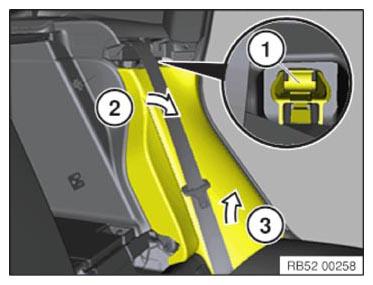

2 Unlock backrest side section at clamp (1).
3 Feed backrest side section up and out.
 Courtesy of BMW OF NORTH AMERICA, INC.
|
Installation note:

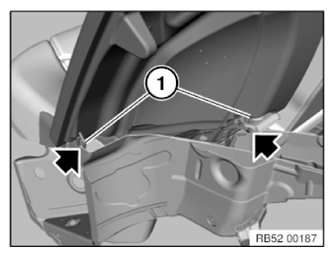

Insert guides (1) from backrest side section into mountings.
 Courtesy of BMW OF NORTH AMERICA, INC.
|
