63 11 560 Removing and installing (replacing) the headlight driver module
WARNING:
Version with xenon lighting system: Danger to life due to high voltage! Disconnect all components from voltage supply before removal.
Work on the entire xenon lighting system (ignition device, control unit and bulb) may only be carried out by qualified personnel.
Work on the entire xenon lighting system (ignition device, control unit and bulb) may only be carried out by qualified personnel.
IMPORTANT:
Read and comply with INFORMATION ON PROTECTION AGAINST ELECTROSTATIC DISCHARGE
!
Necessary preliminary tasks:
- Remove HEADLIGHT

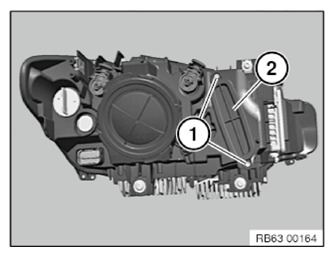

Release screws (1).
Pull headlight driver module (2) out of the headlight.
Installation note:
During installation, make sure gasket (1) is correctly positioned.
Gasket (1) must not be damaged and must be installed free from grease.
Guides must not be missing or damaged.
Replacement:
Teach in headlight driver module (1) via vehicle diagnosis.
- Service functions
- Body
- Lights
- Initialize the headlight driver module and teach in LEDs in headlight
- Code the FEM (if FEM is installed in the vehicle)
